| Features |
- Vacuum interrupter technology provides twice the duty-cycle interruption life and uses no oil or gas for interruption. Magnetic actuator system yields a minimum of 10,000 operations with no maintenance required.
|
- Mounts to wood pole, cross arms or cluster mounting frame.
|
|
| General |
Style |

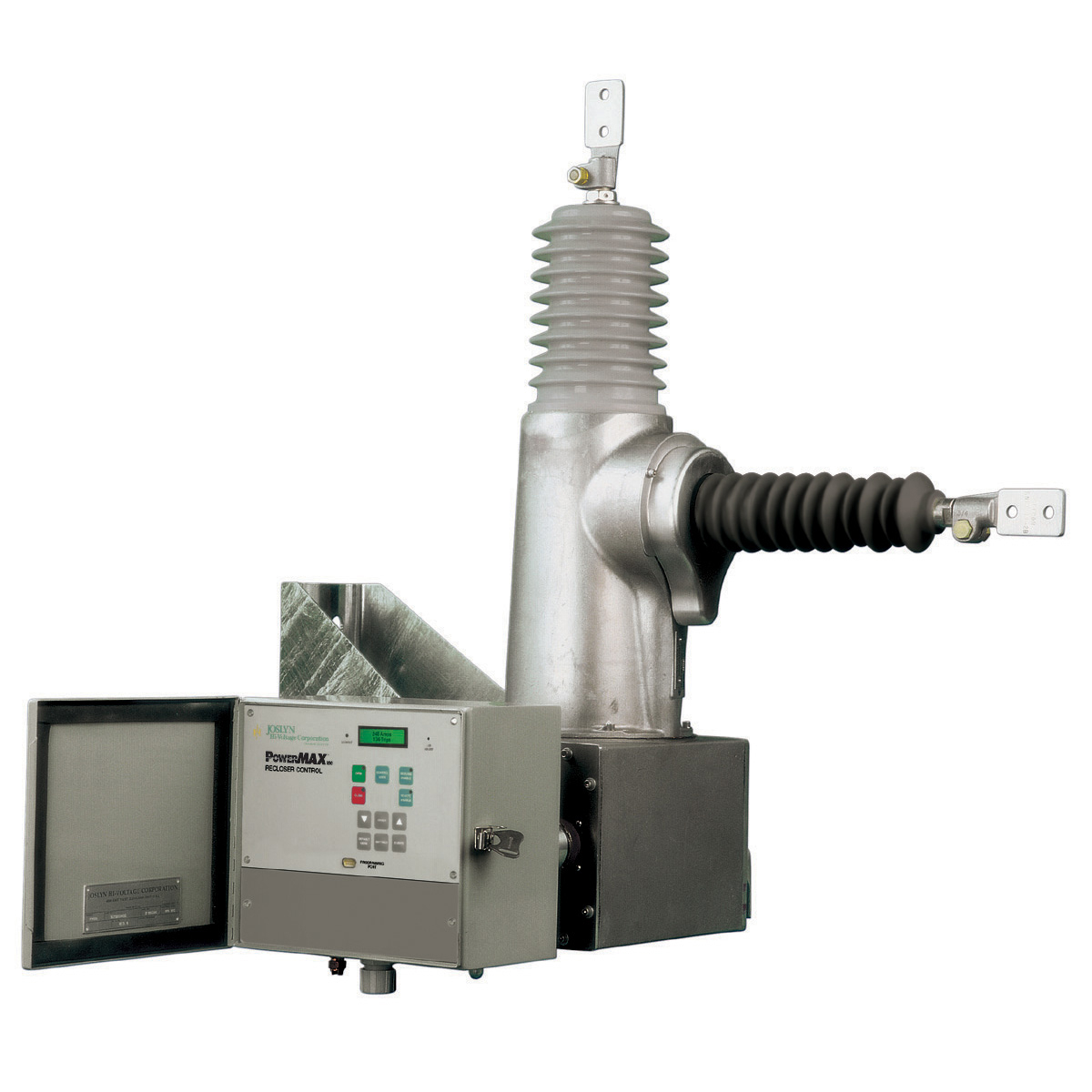

Single-Phase Vacuum Recloser |
Material |
Upper Housing: Cycloaliphatic Epoxy Lower Housing: Aluminum Casting |
BIL (kV) |
125 |
Continuous Current (Amps) |
800 |
Creepage Distances Side Terminal Inches (MM) |
21.35 (542) |
Creepage Distances Top Terminal Inches (MM) |
20.36 (517) |
Interrupting Current (kA RMS Symmetrical) |
12.5 |
Voltage Range (kV) |
17-27 |
|
| Dimension Information |
Total Height Inches (MM) |
40.07 (1,018) |
|
| Specifications |
Number of Phases |
1 |
 Product Specifications |
Click Here |
Weight-Direct Control Mounting LB. (KG) |
144 (65) |
Weight-Remote Control Mounting LB. (KG) |
109 (49) |
|
| Accessories & Components |
Ordering Information |
Click Here |
|
| Application Support |
Product Overview |
Click Here |
Overview |
Click Here |
|
| Notes |
Options |
Remote mounting control package including pole-mounting bracket for the control and shielded control cable with connectors on both ends (specify length up to 45 feet) |
Options_1 |
Arrester mounting provision |
- Specify TriMod™ 100 Series Vacuum Reclosers by selecting voltage class, continuous current and interrupting current rating from the ratings table. Maximum cantilever terminal pad load of 60 lb. (27kg) per pad. Horizontal cable tensions to be opposite in direction.
|
