| Features |
- Trip Logic: Adaptive current trip with inrush restraint logic. Reset Logic: Automatic time reset with return of load current and/or time reset of fault indication. Manual reset also available.
|
- Durable Lexan housing and epoxy-coated sensors protect against moisture for long, maintenance-free service life. Mounting kits available to allow view-plate mounting for padmount applications.
|
|
| General |
Style |

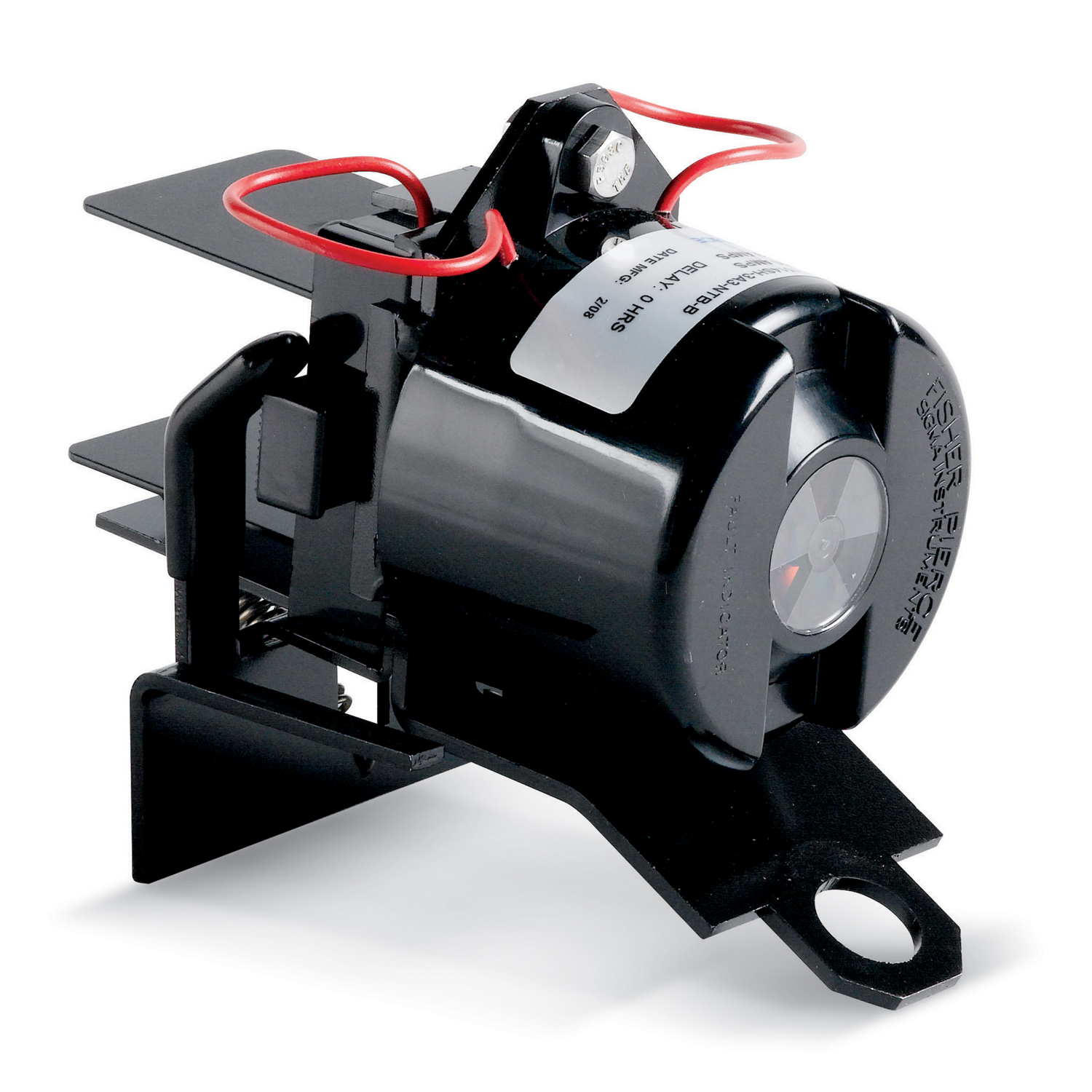

Underground/Padmount FCIs |
Basic Model |
Flag Display |
Trip/Current Setting |
1200A, Fixed Trip |
Reset Time-Delay LED-Radio-Strobe or Flag |
Flag display, Manual Reset Override. Inrush restraint, 60-sec reset time delay after restoration of power |
Maximum Cable Diameter |
2 3/16" |
Indicator Mounting Options |
Bracket/surface mounting (remote from sensor) |
Sensor Termination |
Hotstick clamp attached to sensor (1 5/8" and 2 3/16" cable diameter only) |
Factory Code 1 |
B |
|
| Dimension Information |
Lead Length between Sensor and Display |
30 ft (max) |
|
| Specifications |
 Product Mechanical Data |
Click Here |
Product Specifications |
Click Here |
Reset Current |
3A |
Operating Temperature Range |
-40°C to 85°C |
|
| Accessories & Components |
Ordering Information |
Click Here |
|
| Application Support |
Product Overview |
Click Here |
Overview |
Click Here |
|
| Notes |
- Availability of selected configuration will be verified at quotation time
|
- Consult factory for lower reset currents
|
- Underground Application Note: A solution to problem FCI applications, caused by close proximity cable placement and orientation, is to set the loss of current operate point at 7A. This raised zero reference point greatly improves the adjacent field immunity of the Adaptive Trip FCI. The option is available only with time delayed reset and closed core U-lam sensor. When ordering, add the suffix "R" to the model number. A 3" minimum separation between adjacent cables is recommended for installation.
|
- Consult factory for lower reset currents
|
|
| Certifications |
Certifications |
ANSI/IEEEE 495-1986 |
