| Application |

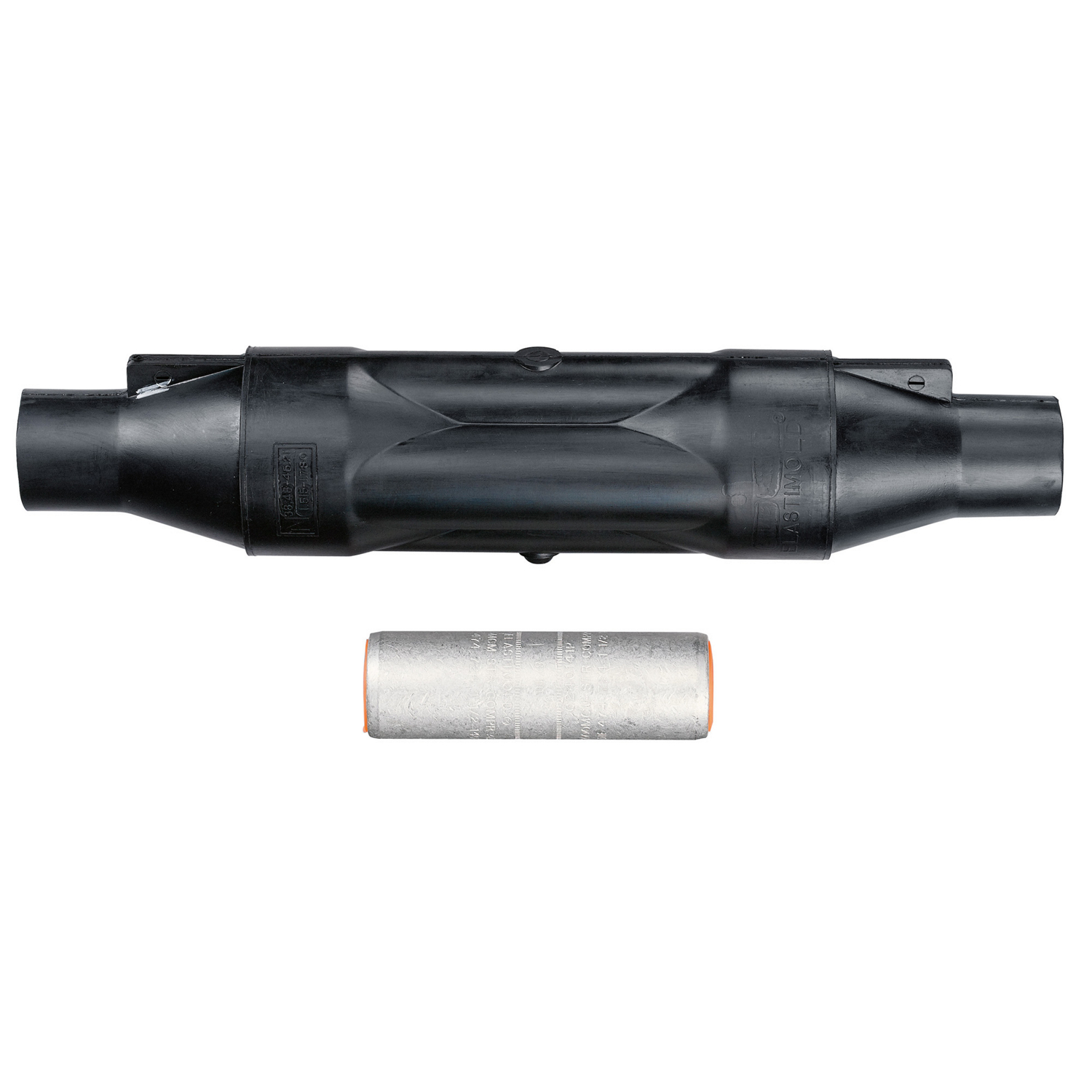

- PCJ Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other severe service applications.
|
|
| General |
Compact or Solid |
#1 |
Stranded or Compressed |
#2 |
Component Type |
Power Cable Joint |
Voltage Class (kV) |
15 |
|
| Dimension Information |
Cable Range Insulation Diameter (inches) |
.640 - .820 |
|
| Specifications |
 Product Specification Sheet |
Click Here |
Temperature Rating |
-40°C to 65°C |
|
| Packaging |
Outer Package |
30 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.8 lbs. Each |
|
| Application Support |
Installation Instructions |
Click Here |
|
| Notes |
- Kit includes aluminum compression connector suitable for splicing aluminum conductor to aluminum conductor or aluminum conductor to copper conductor. An all-copper connector is required for copper-to-copper connections.
|
|
| Certifications |
RoHS Compliance |
Contact Technical Service |
