| Features |
- For bus bars up to 1/4 inch thick, 3-6 inches wide and code copper cable.
|
- Takes up less than 1 1/4 of bus bar space.
|
- Convex shape of connector tongue exerts great contact pressure on bus bar. Contact material Beryllium Copper, silver finish.
|
|
| General |
Material |
Cast Copper |
Finish |
Tin-Plated |
Wire Size |
2/0 |
Wire Size Flex |
1/0, 275/24 |
Die Color |
White |
Die Code |
66H |
Busbar Width |
4 |
|

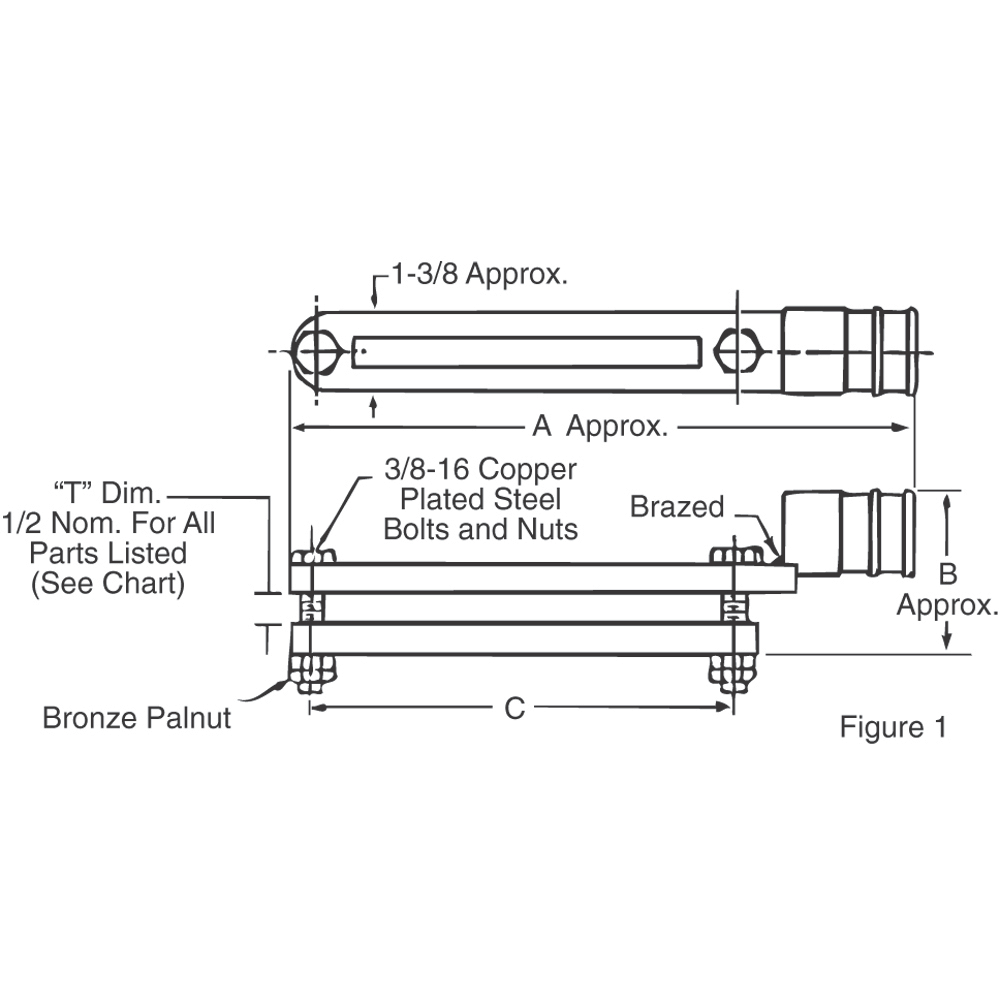

| Dimension Information |
A (inches) |
7.125 |
B (inches) |
2.281 |
C (inches) |
4.5 |
|
| Specifications |
Voltage Rating |
600V to 35KV |
|
| Tooling |
 Connector & Tooling Chart |
Click Here |
|
| Notes |
- Styles shown have cable tap on one portion of clamp assy. Clamp assemblies with cable taps on both portions (top and bottom identical) are also available. These assemblies are identified by adding suffix AD to part number shown.
|
- Only use hydraulic tools with hex crimp dies.
|
