| Features |
- Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size.
|
|
| General |
Insulation Type |
Insulated Nylon |
Terminal Series |
RD |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Red |
Wire Range |
8 |
|
| Dimension Information |
Maximum Insulation (inches) |
.340 |
Stock Thickness |
.04 |

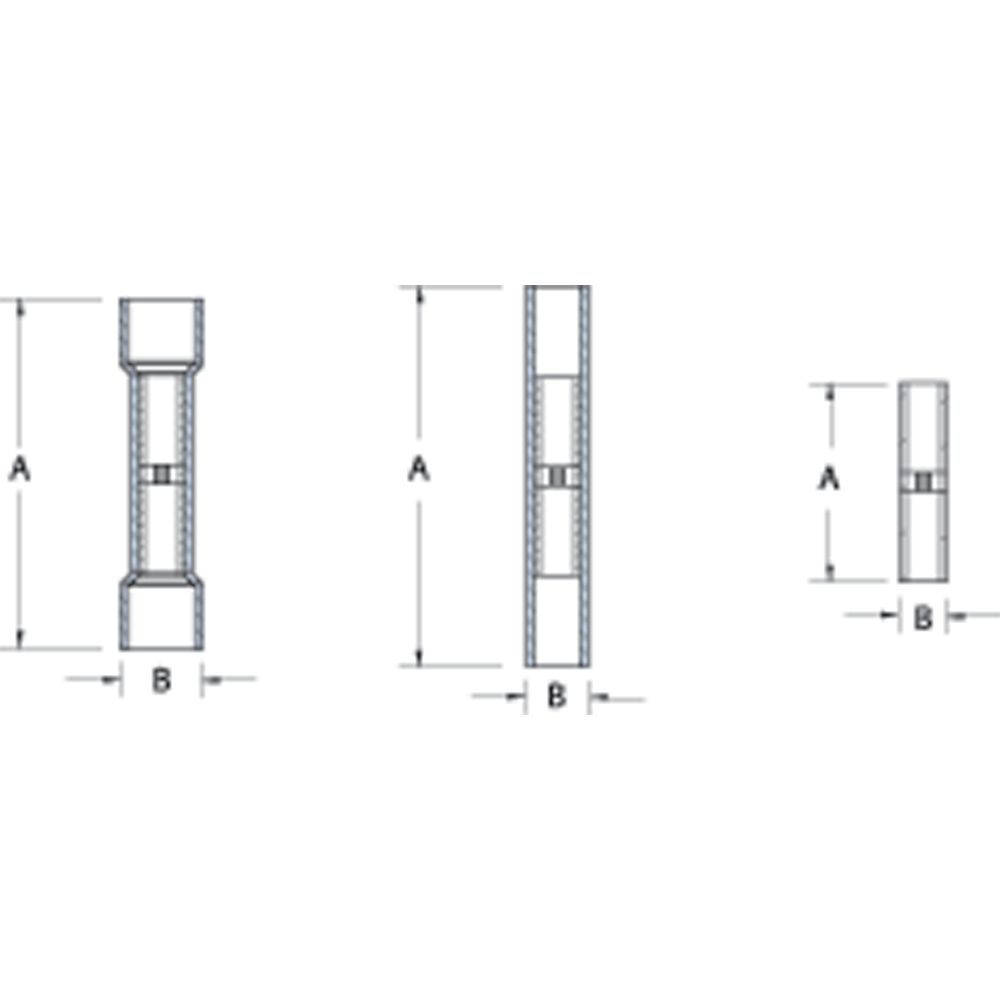

A (inches) |
1.69 |
B (inches) |
.36 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
600V |
Flammability Rating |
UL 94 V-2 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
TBM6, TBM6S, ERG4007 |
Recommended Tool |
ERG4007, TBM6S |
|
| Packaging |
Order Multiple |
25 |
Inner Package |
25 |
Outer Package |
250 |
Package Type |
Standard |
Package Height |
3.4 |
Package Length |
12.2 |
Package Width |
6 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
1.66 lbs. per 100 |
Alternate Package Qty |
RDD27 |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
