| Features |

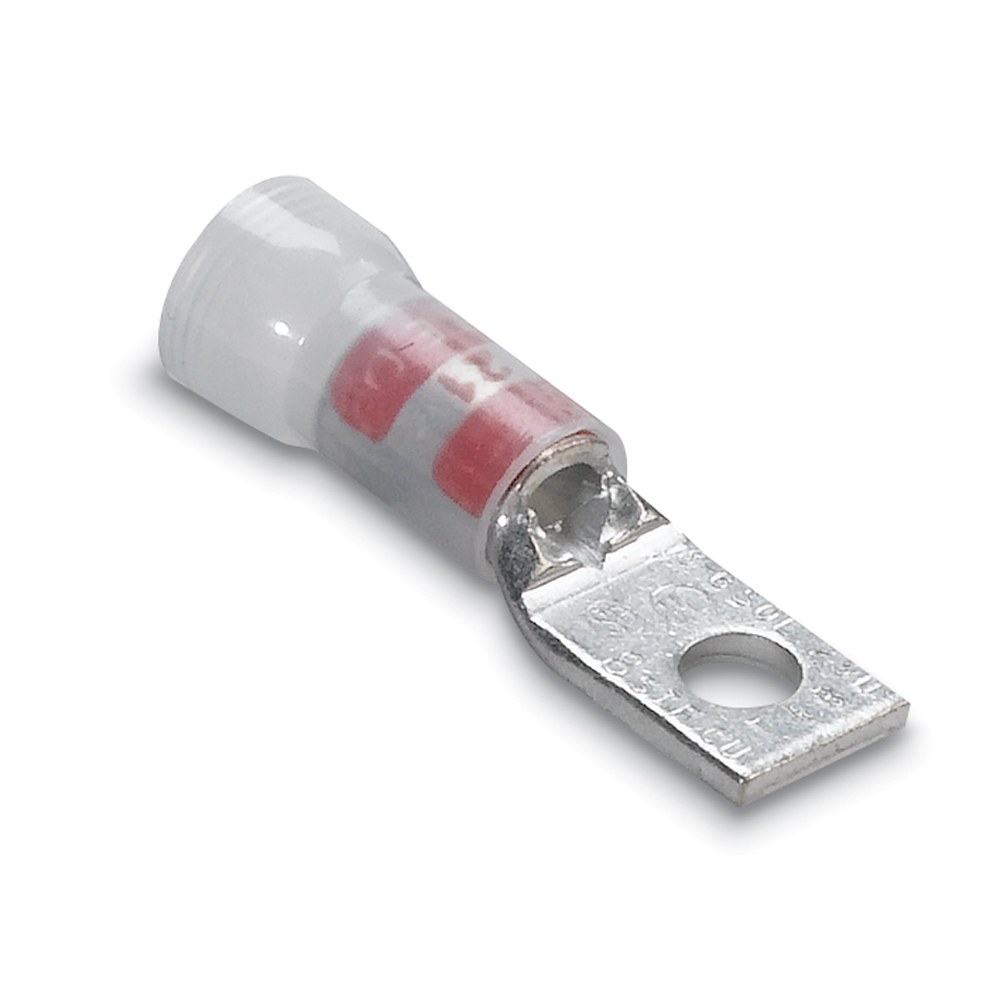

- Translucent nylon insulator provides easy viewing of die code/color.
|
- Variety of options available - finish, tongue width and angle, bolt hole size/ spacing and more.
|
- Easy to install with standard Color-Keyed compression tools.
|
|
| General |
Insulation Type |
Nylon |
Material |
Copper |
Finish |
Tin Plated |
Wire Size |
#4 AWG |
Number of Studs |
1 |
Stud Size |
1/4 |
Tongue Angle |
Straight |
Barrel Length |
Standard |
Barrel Shape |
Standard |
Tongue Width |
Standard |
Peep Hole |
Y |
Marking |
Standard |
Hole Shape |
Round |
Die Color |
Grey |
Die Code |
29 |
|
| Dimension Information |
A (inches) |
1.76 |
B (inches) |
0.6 |
C (inches) |
0.55 |
D (inches) |
0.09 |
E (inches) |
0.53 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
600V |
|
| Tooling |
 Connector & Tooling Chart |
Click Here |
|
| Packaging |
Order Multiple |
50 |
Inner Package |
50 |
Outer Package |
500 |
Package Height |
3.31 |
Package Length |
12.18 |
Package Width |
6 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
2.15 lbs. per 100 |
|
| Application Support |
 T&B Sales Drawings |
wsd-000451 |
Overview |
Click Here |
|
| Notes |
- Dimensions given for reference only. Dimensions may vary up to +/- .030.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
