| Features |
- Safe and Reliable Power Connections: Pin and Sleeve, Voltage Polarized
|
- Easy to Wire: "No twist off locking plugs," Fast assembly and wiring, Set screw terminals.
|
- Industrial safety grade construction
|
- Industrial safety grade construction
|
|
| Application |
- General Industrial: Lighting Connections, Indoor Welding Stations, Machinery/Tool Connections, Power Distributions Panels, Convenience Power, Battery Charging Equipment
|
- General Industrial: Lighting Connections, Indoor Welding Stations, Machinery/Tool Connections, Power Distributions Panels, Convenience Power, Battery Charging Equipment
|
- Construction: Generator Set Panels, Portable Tools and Equipment, Limited-Life Installations, Portable Lighting Equipment
OEMs: Export Machinery, Critical Power Connections, International Indoor Usage, Transportable Equipment
|
- Instrumentation: Portable Equipment, Critical Power Connections and Robotics Power, Motor Power Connections, Test Equipment, Laboratory/Test Stations
|
|
| General |

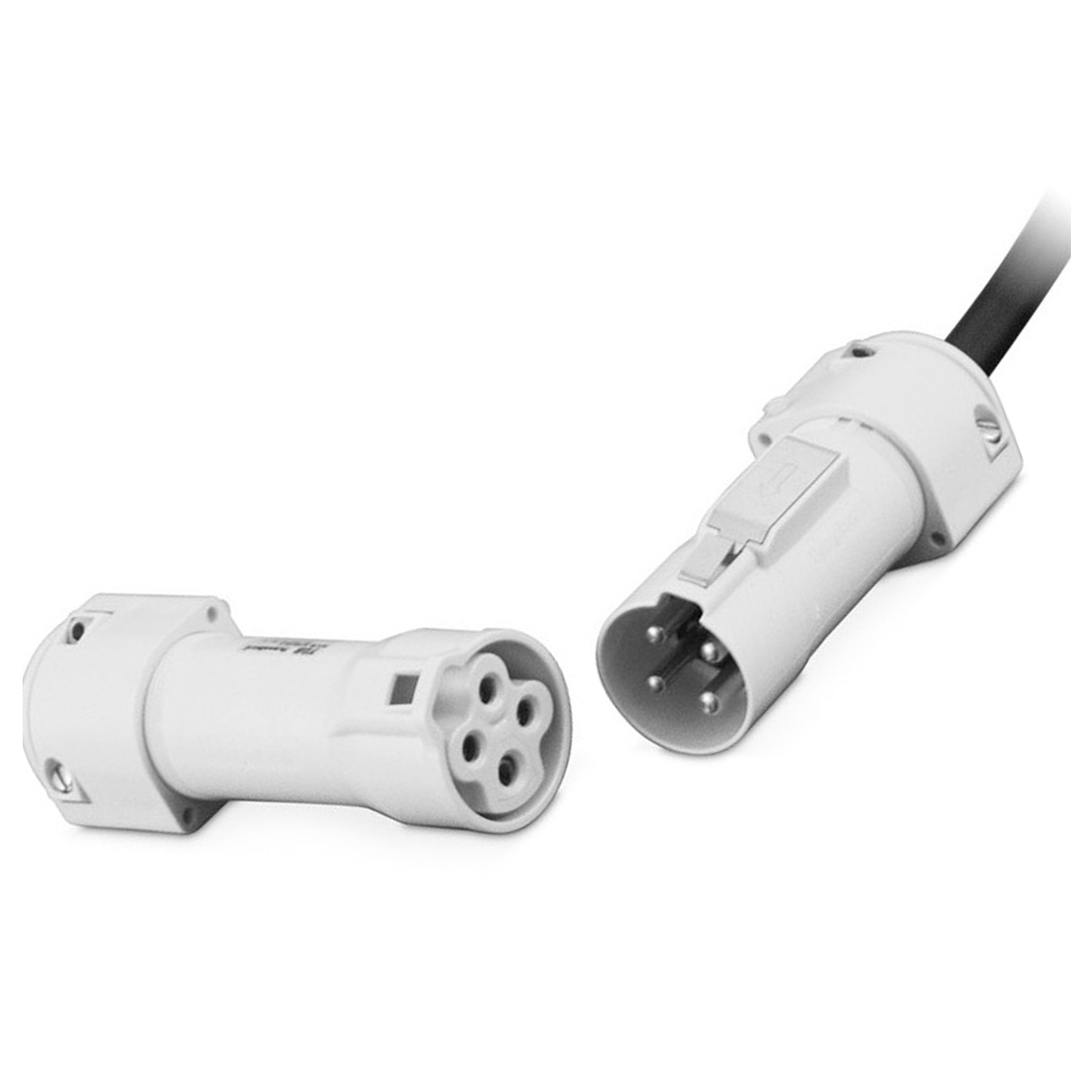

Style |
Connector |
Material |
DuraV high impact body and collars |
Material_1 |
Brass Pin and Sleeve Contacts |
Frequency |
60 Hz |
Amperage |
30 Amp |
Pole/Wire |
3P/4W |
System |
Industrial & Commercial |
Voltage |
600 Volts AC |
|
| Dimension Information |
 Overall Dimensions |
Click Here |
|
| Specifications |
Engineering Specifications |
Click Here |
|
| Packaging |
Outer Package |
1 |
Package Height |
2.5 |
Package Length |
6.4 |
Package Width |
2.5 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.57 lbs. Each |
|
| Application Support |
 T&B Instruction Sheets |
ta01934-tb2 |
Overview |
Click Here |
Russellstoll Application Guide |
Click Here |
