Features

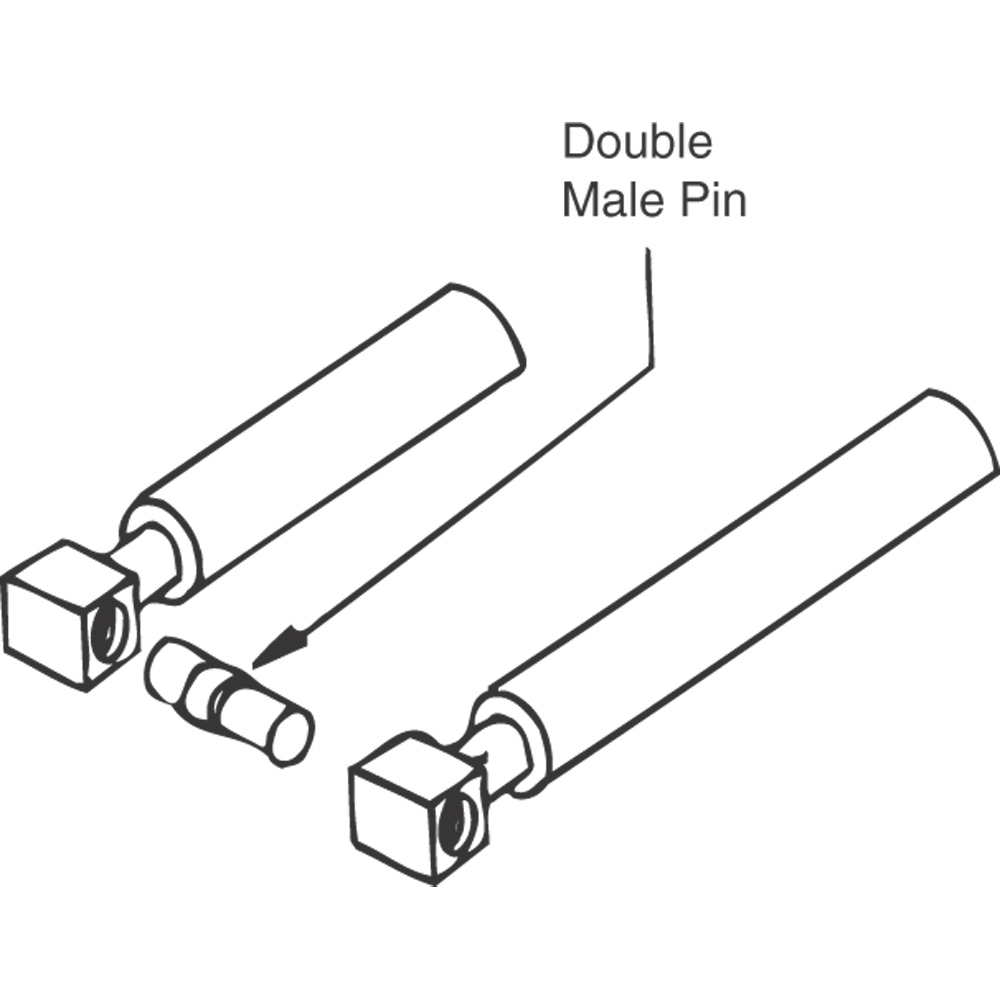

Supplied with Boot, Double-male Pin, and Silicon Gel.
General
Style	5KV Boot
Material	Thermoplastic Rubber
Wire Size	#1 - #8 AWG
Body Size	2
Female Disconnect Catalog No.	MD8F2, MD6F2, MD4F2, MD2F2, MD1F2
Dimension Information
A (inches)	4.50
B (inches)	2.25
C (inches)	1.44
Specifications
Voltage Rating	5KV
Packaging
Outer Package	6
Package Height	6.7
Package Length	9.9
Package Width	4.5
T&B Sold in UOM	Each
T&B Weight Per UOM	58.33 lbs. per 100
Notes
Two female connectors required.
Certifications
RoHS Compliance	Yes (exemption 6Lead as an alloying element in steel containing up to 0.35% lead by weight, aluminium up to 0.4% lead by weight and as copper alloy containing up to 4% lead by weight (OJ of EU 2/13/2003))  Generate Compliance Certificate
