| General |
Style |
Belleville Spring Washer Plus Flat Washer |
Material |
Steel |
Finish |
Zinc Cromate |
Stud Size |
5/16 |
|
| Dimension Information |
A (inches) |
.875 |
B (inches) |
.074 |
C (inches) |
.813 |
D (inches) |
.065 |
|
| Specifications |
Recommended Installing Torque In-Lbs. |
125 - 150 |
|
| Packaging |
Inner Package |
50 |
Outer Package |
500 |
Package Height |
3.3 |
Package Length |
8.7 |
Package Width |
6 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
1.9 lbs. per 100 |
|
| Notes |

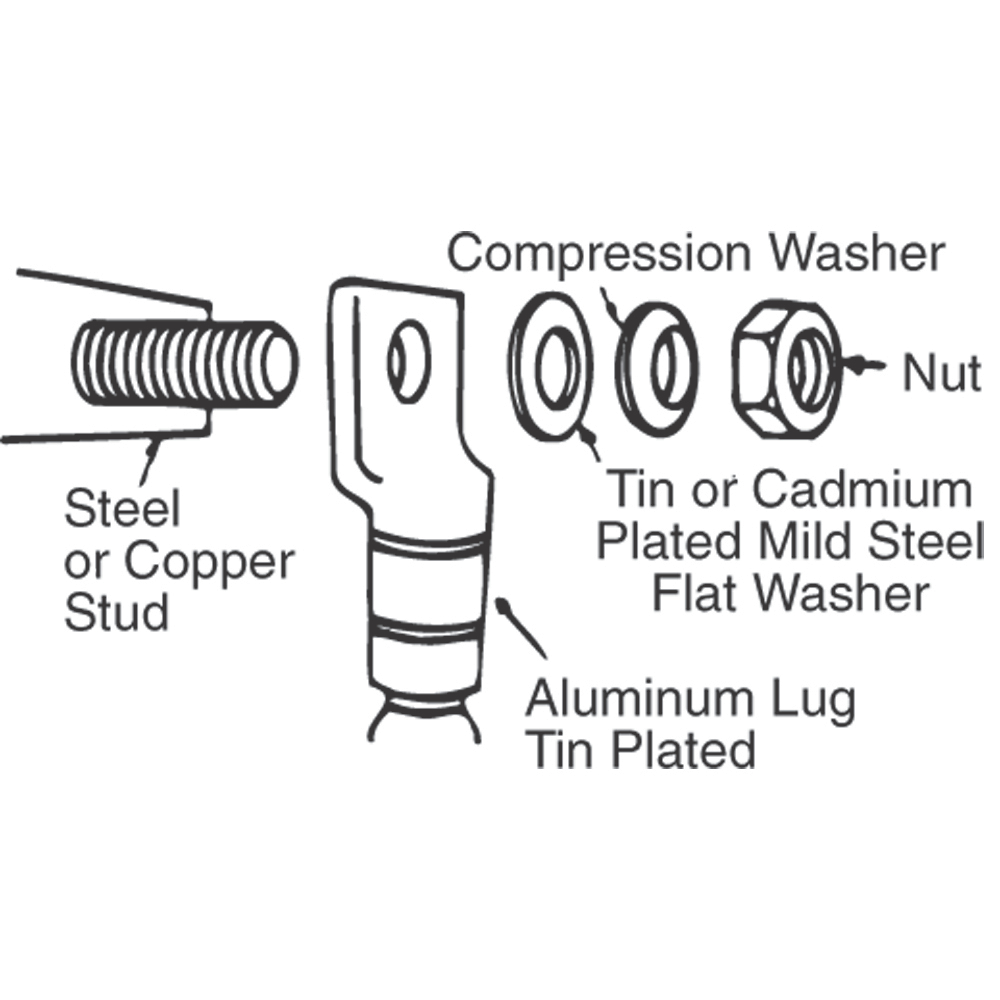

- When bolting aluminum lugs and connectors to buss bars with steel or brass hardware, the recommended practice to ensure a tight connection is to use a Belleville spring washer on top of a flat washer under the bolt head or nut. For heavy-duty service where the heat rise is expected to exceed 30 degrees Celcius above ambient, this procedure maintains constant pressure as the connector metals expand and contract with temperature changes.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
