| Features |
- These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
|
|
| General |
Insulation Type |
Non-Insulated |
Terminal Series |
A |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Metallic |
Wire Range |
22-16 |
Stud Size |
#10 |
|

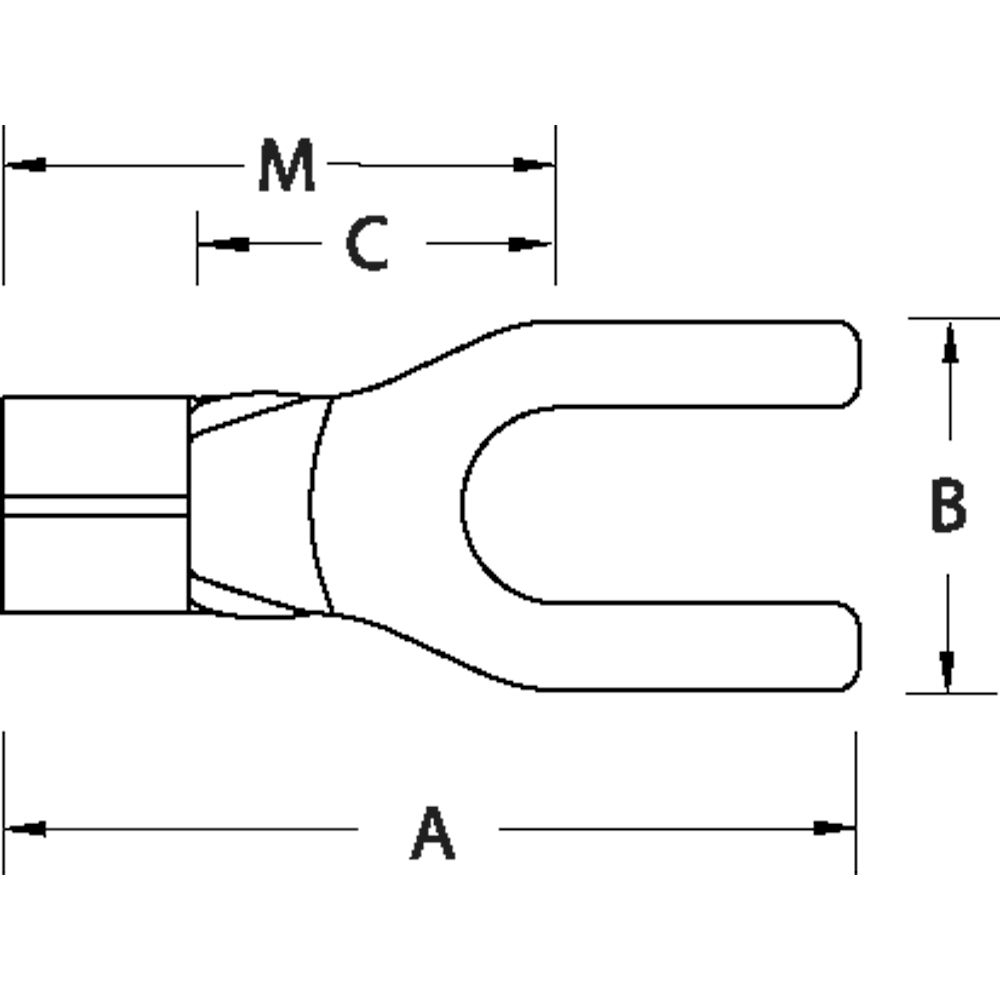

| Dimension Information |
Stock Thickness |
.03 |
A (inches) |
.75 |
B (inches) |
.31 |
C (inches) |
.27 |
M (inches) |
.59 |
|
| Specifications |
Temperature Rating |
150°C |
Voltage Rating |
600V |
Flammability Rating |
UL 94 V-0 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
WT110M, WT111M, WT112M, WT2000, ERG4002 |
Recommended Tool |
ERG4001 |
|
| Packaging |
Order Multiple |
100 |
Inner Package |
100 |
Outer Package |
500 |
Package Type |
Standard |
Package Height |
4.9 |
Package Length |
2.6 |
Package Width |
1.8 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.25 lbs. per 100 |
Alternate Package Qty |
A115 |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
