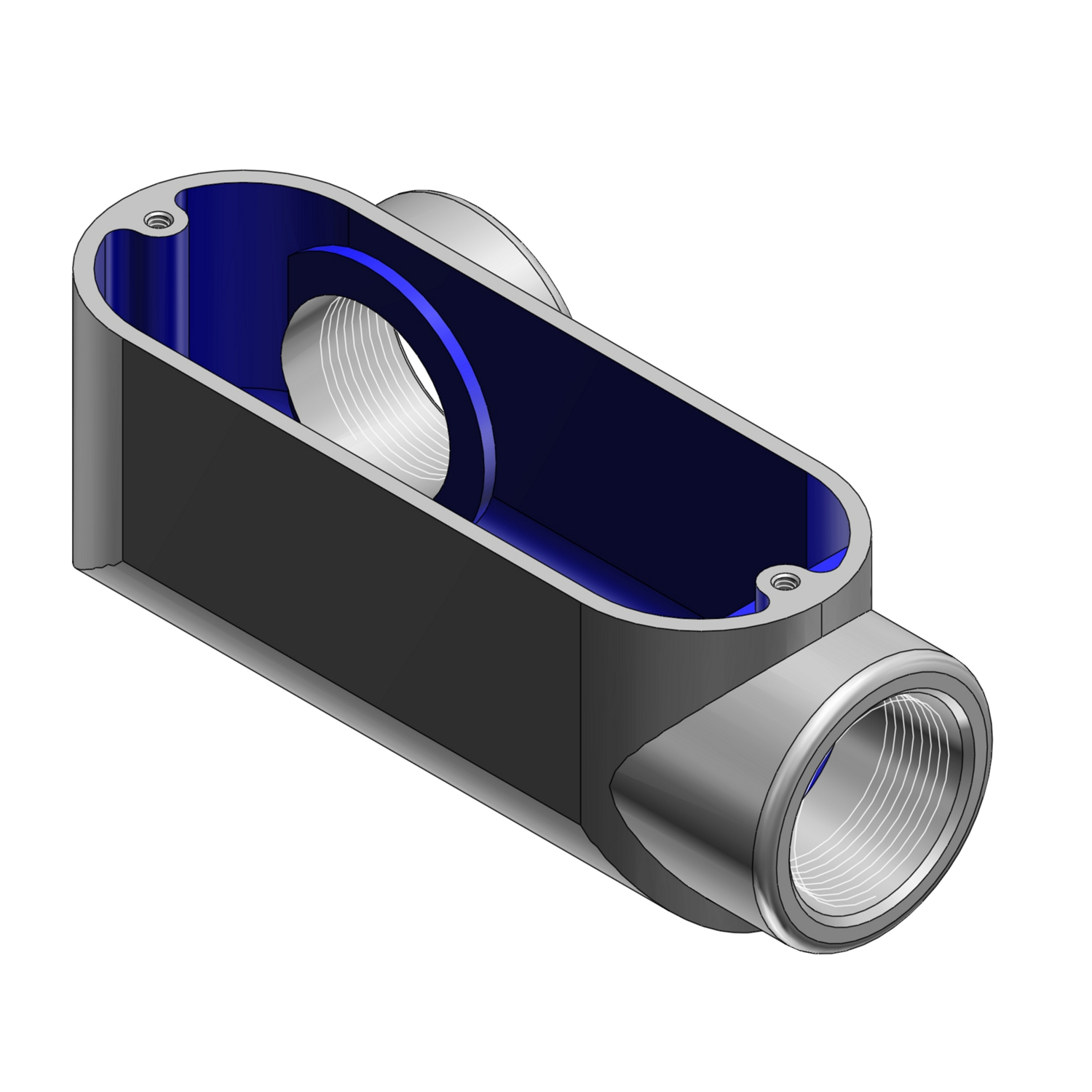

| Features |
- Retained stainless steel cover screws
|
- Smooth throats for easy wire pulling
|
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
|
|
| Application |
- For use with rigid/IMC conduit
|
- Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.
|
|
| General |
Trade Size (inches) |
1-1/4 |
Material |
Die Cast Aluminum |
Volume (cu.in.) |
32 |
|
| Dimension Information |
A (inches) |
7 1/4 |
B (inches) |
6 1/2 |
C (inches) |
7 7/8 |
D (inches) |
2 1/2 |
E (inches) |
2 3/4 |
F (inches) |
6 5/16 |
G (inches) |
3 3/8 |
H (inches) |
1 1/2 |
|
| Accessories & Components |
D-Pak Catalog Number |
DALL-4-CG |
Cover-Die Cast |
CV-4 |
Cover-Stamped Aluminum |
SCV-4 |
Gasket-Composition |
GKV-4 |
Gasket-Neoprene |
GKN-4 |
|
| Packaging |
Order Multiple |
2 |
Inner Package |
2 |
Outer Package |
10 |
Package Height |
6.75 |
Package Length |
14.88 |
Package Width |
8.31 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
1.68 lbs. Each |
|
