Flexible Conduits & Fittings
T&B Catalog Number:
BVBD-M406GT
UPC Number:
78620994889
Status:
Active
Description:

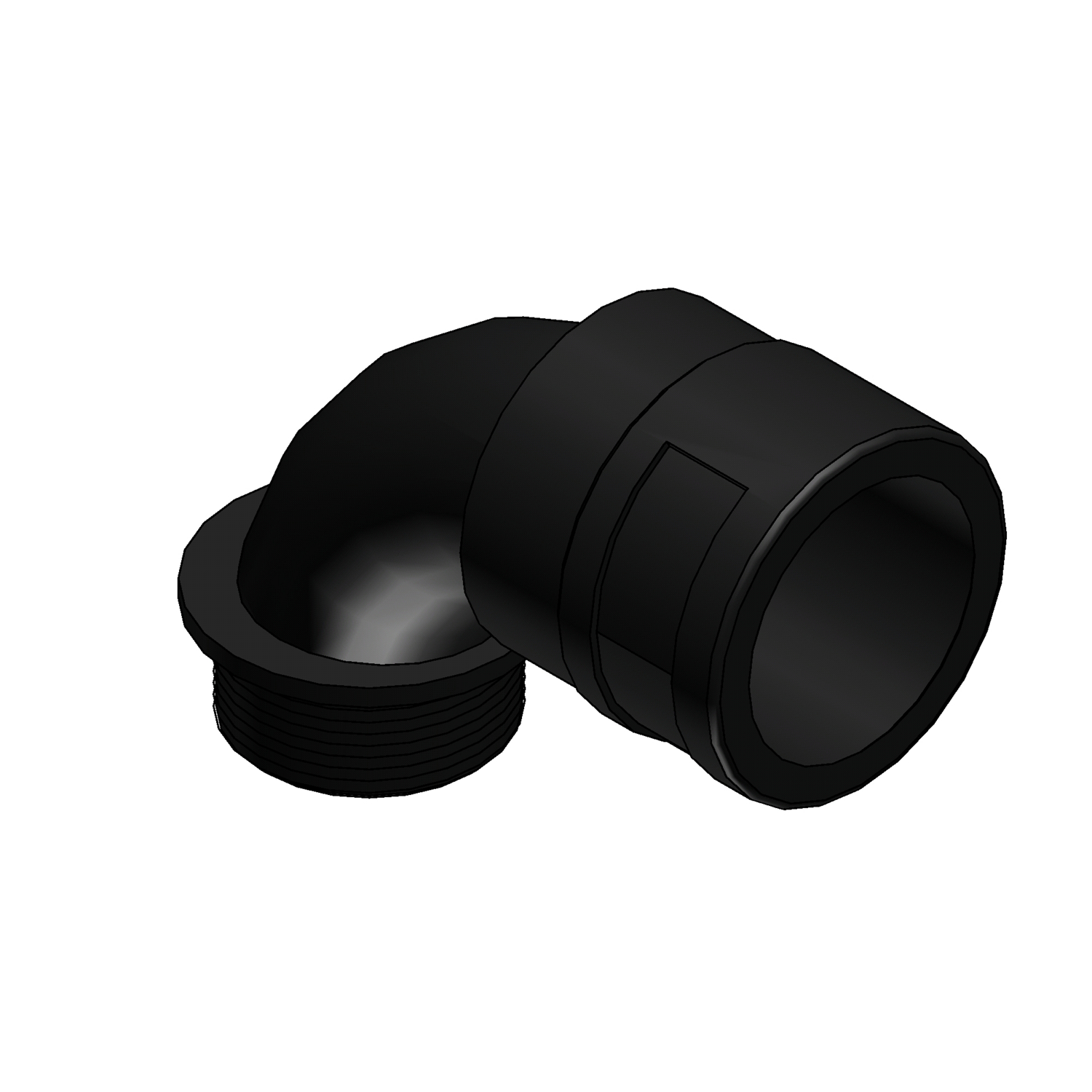

PMAFIX 90 degree one-piece curved black elbow with universal safety clip. Material - polyamide 6, thread type - metric, thread size - M40 x 1.5, conduit size NW - 36.
ROHS
CAD
SUBMITTAL PACKAGE
Where To Buy

Enter Zip Code:
Enter Quantity:
Application
  • For use in high quality installations and machine construction

Characteristics
  • One-piece connector
  • Hand opening not possible
  • Easy mounting, just push into conduit
  • Can be re-opened with a screwdriver
  • High pull-out strength
  • Smooth elbow allows easy guidance through connector
  • Fits both conduit profiles - Fine (T) and coarse (G)
  • Easy threading of wires and cables

General
Material Polyamide 6
Color Black
Thread Type Metric
Compatiable With PMAFLEX

Dimension Information
Fits to Conduit Size (NW) 36
Fits to Conduit Size (metric) 40
Fits to Conduit Size (inches) 1 1/4
Thread Size (Metric) M40 x 1.5

Technical Information
Temperature Range-Continuous (Celsius) -40 degree C to +105 degree C
Temperature-Short-Term (Celsius) +160 degree C
 Technical Data Sheet Click Here
 Chemical Resistance Chart Click Here

IP Ratings
IP Rating IP66 stat. / IP54 dyn.

Packaging
Order Multiple 20
Inner Package 20
Outer Package 40
Package Height 7.874
Package Length 15.748
Package Width 11.811
T&B Sold in UOM Each
T&B Weight Per UOM 0.06 lbs. Each

Application Support
 PMA Reference Guide Click Here
 Prouduct Overview-PMAFIX Connectors Click Here
 PMAFIX Connectors-Safety and Sealing Systems Click Here

Certifications
RoHS Compliance Yes   Generate Compliance Certificate
