| Features |

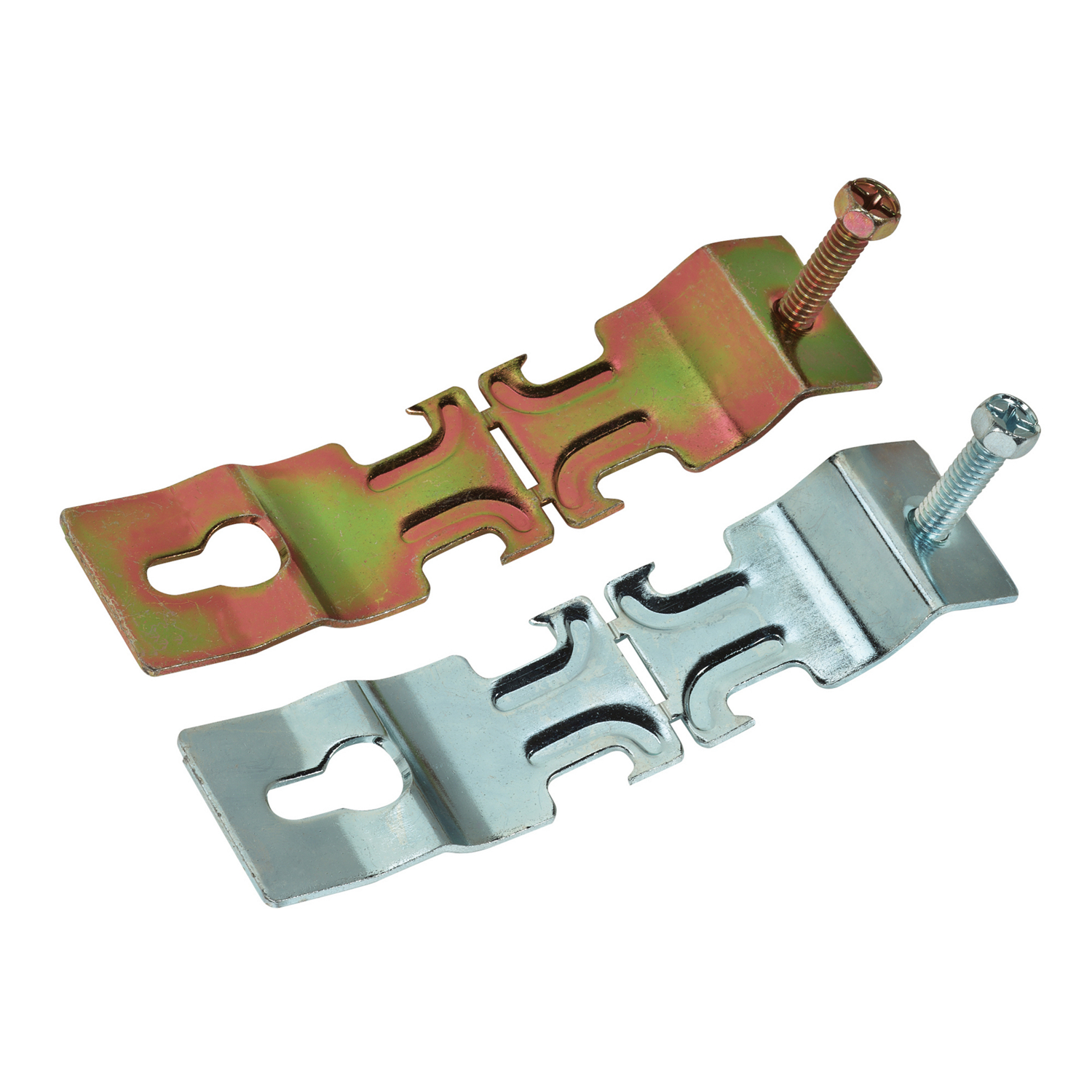

- Superior Load Performance-The highest load ratings of any break-apart strap in the industry. Integrated, rolled threading provides the load performance of a hex nut without the extra hardware.
|
- Easy Bolt Access-Angler™ makes it simple to reach bolts with a screwdriver or power tool, even when clamps are installed side by side.
|
- One-Piece Design-No disassembly, no spare parts to lose or drop, easy to carry and store.
|
- Fast Installation-Keyhole-shaped opening enables bolt to be fed through strap without first being unthreaded.
|
|
| Application |
- For use with Rigid Conduit and Standard Pipe.
|
|
| General |
Material |
Steel |
Finish |
Hot-Dip Galvanized |
Design Load (lbs) |
500 |
Install Torque (in. lbs.) |
40 |
|
| Dimension Information |
Size (inches) |
3/4 |
Material Thickness (ga.) |
14 ga. |
|
| Packaging |
Outer Package |
100 |
Package Height |
5.5 |
Package Length |
12.1 |
Package Width |
9.2 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
12.6 lbs. per 100 |
|
| Application Support |
 T&B Sales Drawings |
wsd-000232 |
 Product Overview-Finishes & Materials |
Click Here |
Product Brochure-Angler |
Click Here |
|
| Notes |
- Pipe sizes 2 1/2" to 4" utilize the same clamps for the Rigid and Universal Series.
|
- Hex head size 3/8" for 1/2" to 1 1/4" sizes and 1/2" for 1 1/2" to 4" sizes.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
