| Features |

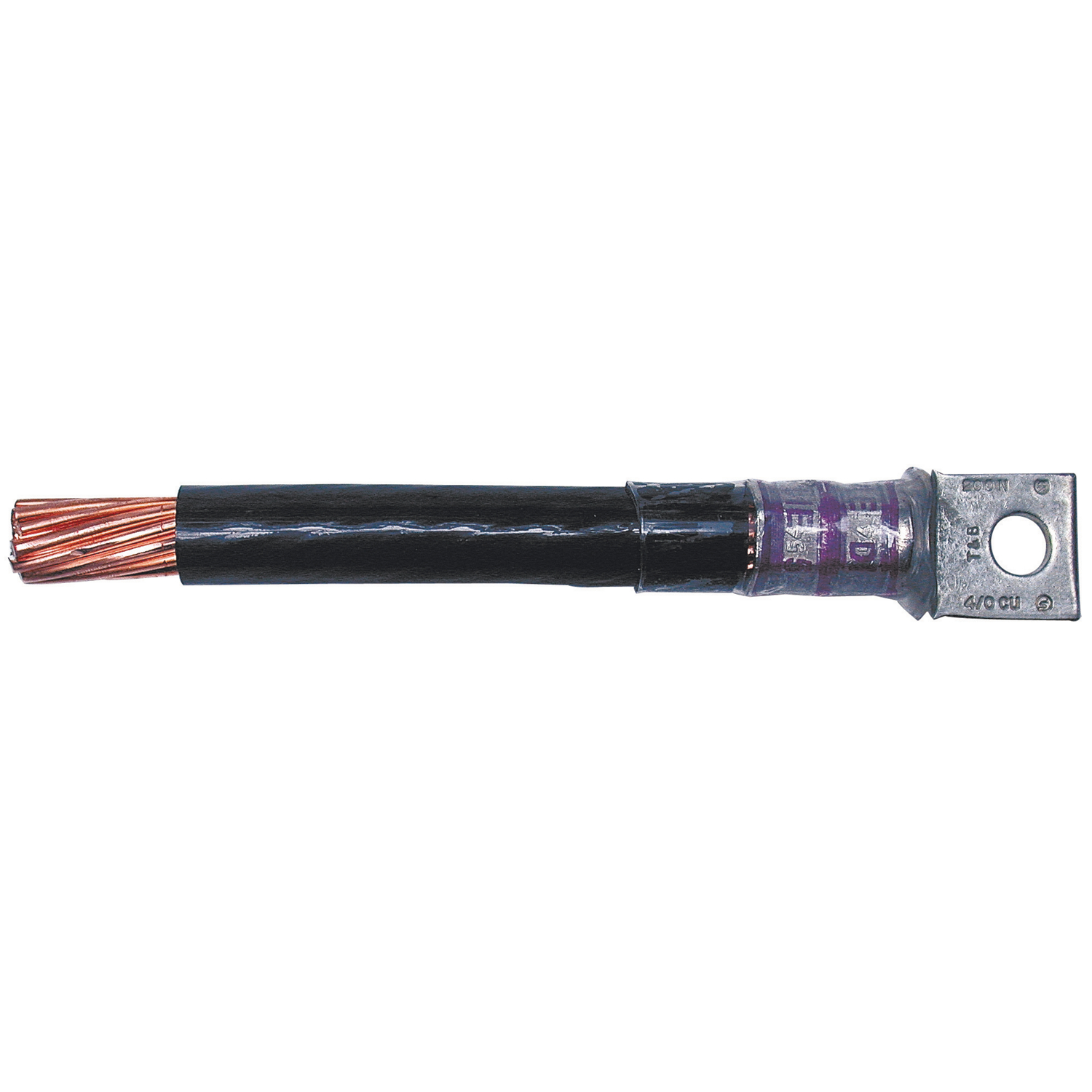

- Clear shrink enables user to inspect die and crimp details after installation.
|
- Flexible PVC tubing is suitable for industrial and electonic applications.
|
- UL standard UL224, VW-1 Rated. CSA standard C22.2 no. 198.1 oft.
|
|
| General |
Style |
CHS Series - Clear |
Color |
Clear |
Temperature Range |
-55°C - 110°C |
Shrink Ratio |
2:1 |
|
| Dimension Information |
Length (feet) |
250 |
Minimum Expanded I.D. (inches) |
0.5 |
Maximum Recovered I.D. (inches) |
0.25 |
Nominal Recovered Wall (inches) |
0.03 |
Cable Range |
4 - 2 AWG |
|
| Specifications |
Shrink Temperature |
110°C |
|
| Packaging |
Outer Package |
1 |
Package Height |
6.75 |
Package Length |
16 |
Package Width |
16 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
2.59 lbs. per 100 |
|
| Application Support |
 Specifications |
Click Here |
Overview |
Click Here |
|
| Notes |
- Standard package is reels. Order by reel, not by feet.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
