Features

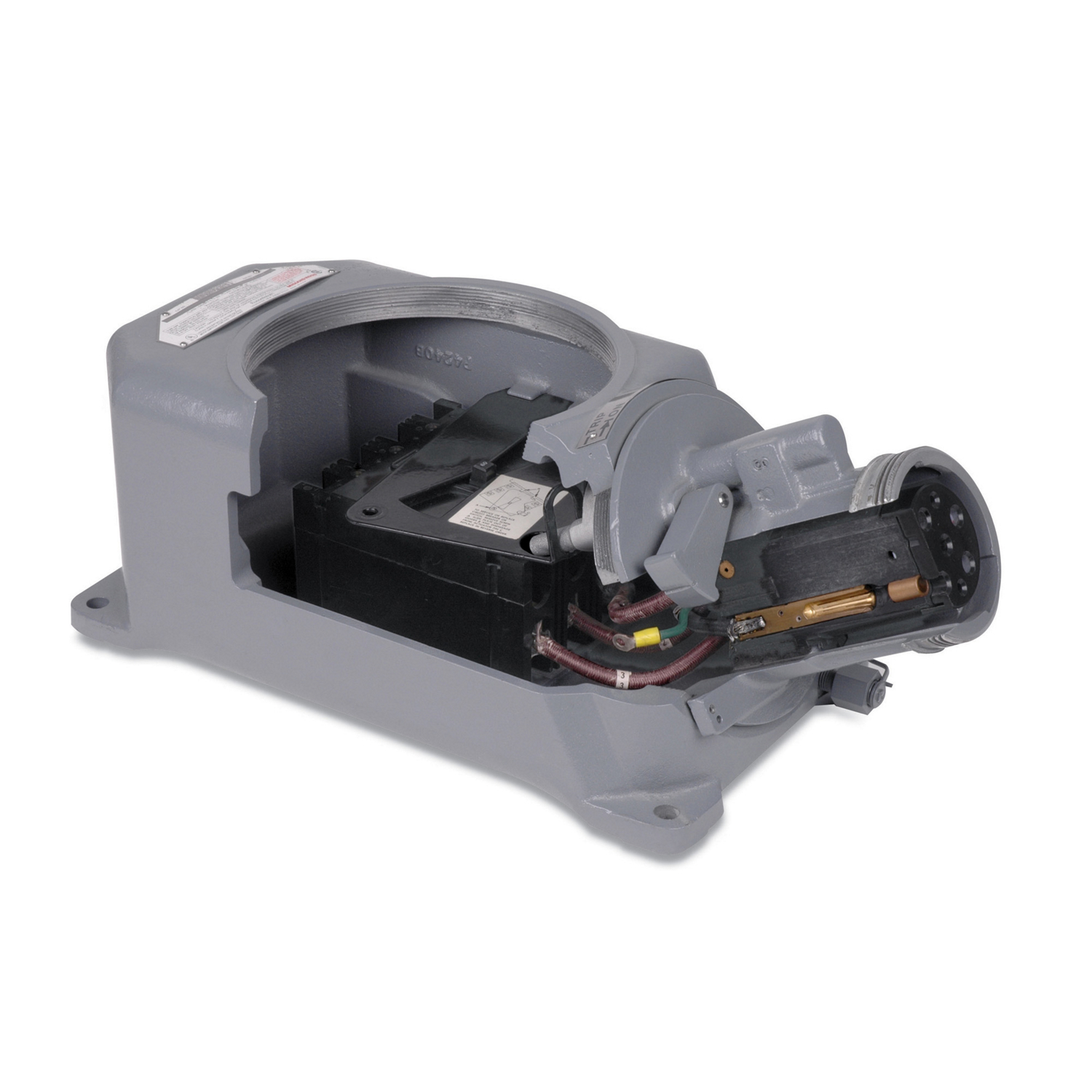

Explosion-proof waterproof circuit breaker interlocked receptacle O-ring sealed along with optional control contacts fully UL listed.
Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need.
Center ground contacts: make FIRST, break LAST
All receptacles and connectors have a gated hotating disk on the face of the interior, engaged on insertion.
Application
For use with watertight plugs and inlets where portable equipment is on stand by and plugs are not in use.
For use in applications where outdoor, severe or high abuse environments exist.
For us in hazardous location applications such as petroleum, chemical, steel mills and mining, food processing, waste treatment, or aerospace
General
Style	Explosion Proof Interlocked Receptacle
Material	Copper Free, Cast Aluminum, Epoxy Powder-Coated Housing
Material_1	Standard Neoprene O-ring interior components
Frequency	60 Hz
Amperage	100 Amp
Pole/Wire	2P/3W
System	Hazardous Locations
Voltage	125 Volts AC
Dimension Information
Overall Dimensions	Click Here
Specifications
NEMA Rating	NEMA 7, 8, 9, NEMA 4X
Engineering Specifications	Click Here
Packaging
Outer Package	1
Package Height	11.13
Package Length	24
Package Width	13
T&B Sold in UOM	Each
T&B Weight Per UOM	45 lbs. Each
Application Support
Overview	Click Here
Russellstoll Application Guide	Click Here
Notes
For Control Contacts Add "K" To Position 12 In Catalogue Number, For Shunt Trip Breaker Add "Z" To Position 13 In Catalogue Number
Certifications
RoHS Compliance	No
Certifications	Class I, Division 1, Groups B, C and D; Class II, Division 1, Groups F and G Class II, Division 1, Groups F and G DOT shipboard used above deck "green water"
USCG Approved	Y
