| Features |
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
|
|
| General |
Ferrule Type |
Insulated |
Insulation Type |
Insulated Nylon |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Red |
Wire Range |
18-17 |
Wire Size (mm²) |
1.00 |
|

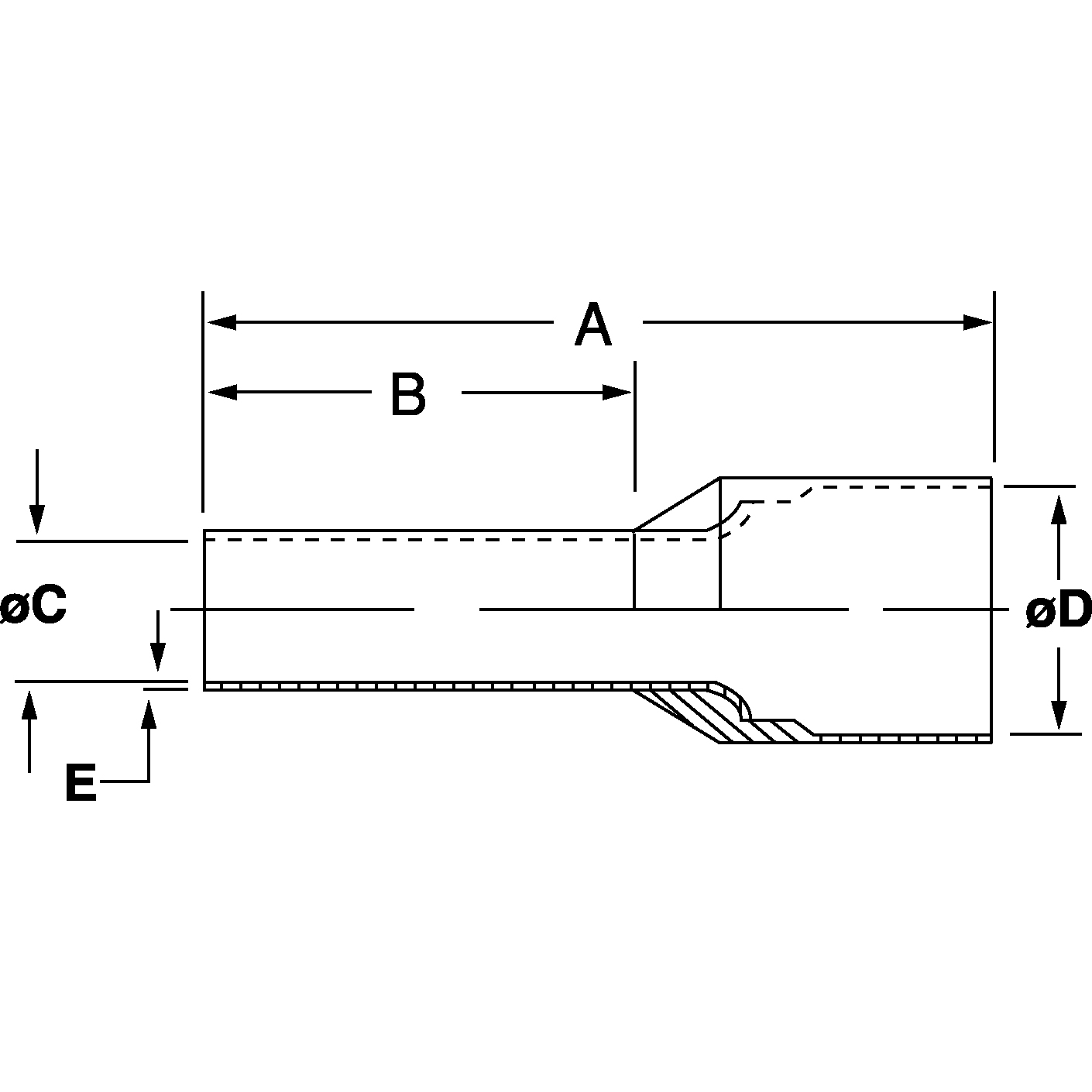

| Dimension Information |
A (mm) |
14.5 |
B (mm) |
8.0 |
Diameter C (inches) |
.059 |
Diameter C (mm) |
1.5 |
Diameter D (inches) |
.118 |
Diameter D (mm) |
3.0 |
E (mm) |
.15 |
A (inches) |
.571 |
B (inches) |
.315 |
E (inches) |
.006 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
300V |
Flammability Rating |
UL 94 V-2 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
T1, T3, ERG2 |
Recommended Tool |
T1, T3, ERG4 |
|
| Packaging |
Order Multiple |
500 |
Inner Package |
500 |
Outer Package |
10000 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.02 lbs. per 100 |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Notes |
- Ferrule dimensions conform to DIN 46228, Part 4.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
