| Application |
- The R2T and R2IT termination design couples shrink-fit technology and Elastimold's pull-down jacket seal feature to provide a termination line that covers the widest range of applications with the fewest number of models.
|
|
| General |

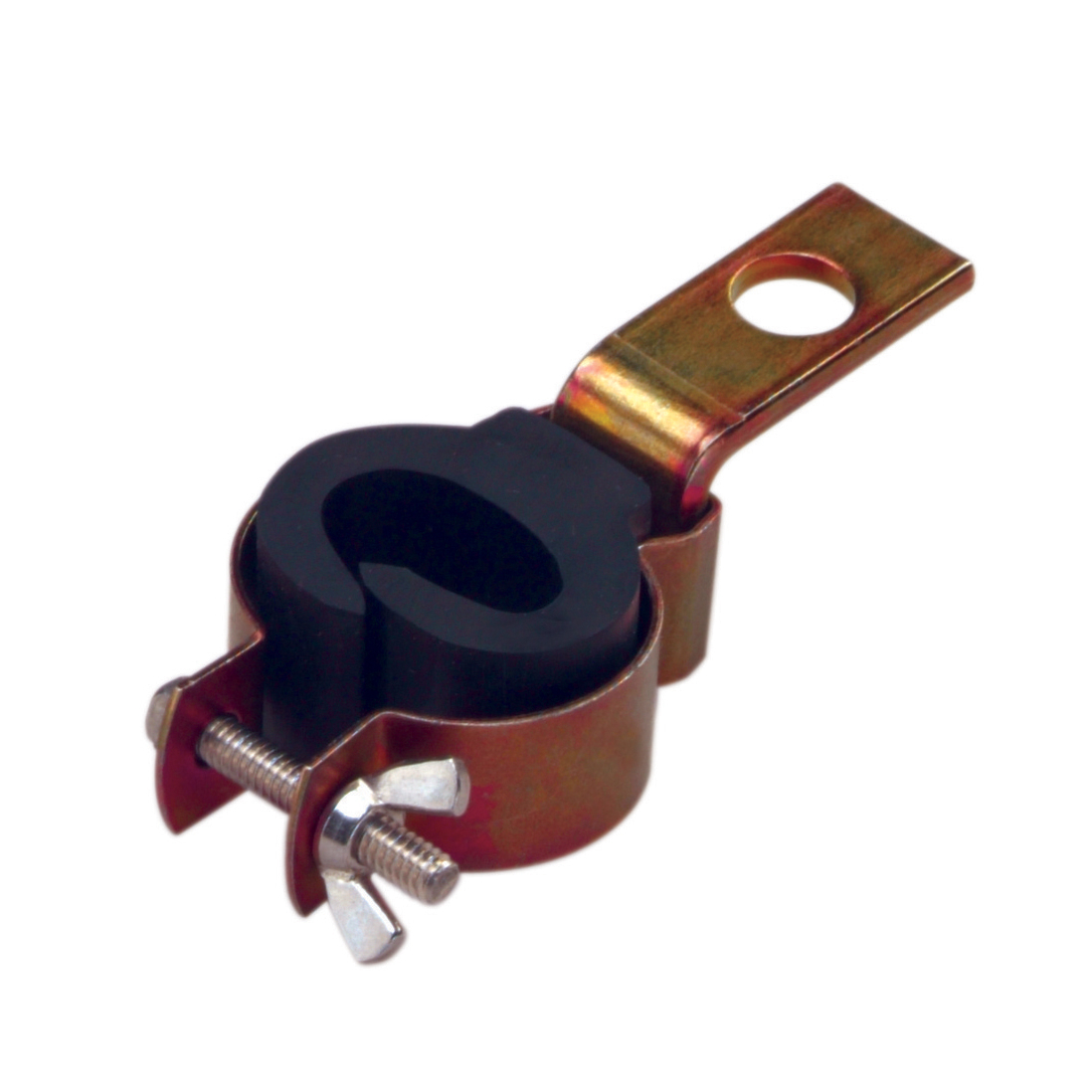

Style |
Cable Support Brackets |
Material |
Plated Mild Steel |
Temperature Range |
-40°C to 65°C |
Accessories and Options Type |
Single Clamp |
Component Type |
Ranger2 Terminations |
|
| Dimension Information |
Cable Range Overall Diameter (inches) |
1.10 - 1.50 |
Cable Range Overall Diameter (mm) |
28 - 38 |
|
| Specifications |
Temperature Rating |
-40°C to 65°C |
|
| Accessories & Components |
 Accessories and Options |
Click Here |
|
| Packaging |
Order Multiple |
1 |
Inner Package |
1 |
Outer Package |
25 |
Package Height |
9 |
Package Length |
11 |
Package Width |
14 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.29 lbs. Each |
|
| Certifications |
Standards Compliant |
IEEE 48, Ansi C119.4, AEIC CS8-06 & ANSI/ICEA S-94-649-2004 & S-97-682-2000 |
