| Features |
- The conduit body and cover are double coated with a nominal .002" (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied
|
- A minimum of .040" (40 mil) PVC coating is bonded to the exterior.
|
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
|
- Ocal pressure-sealing sleeves on all threaded hubs.
|
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
|
- Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
|
|
| Application |
- Act as pull outlets for conductors being installed
|
- Provide openings for making splices and taps in conductors
|
|
- Provide taps for branch conduit runs
|
- Make 90° bends in conduit runs
|
- Provide for access to conductors for maintenance and future system changes
|
|
| General |
Trade Size (inches) |
3/4 |
Material |
Aluminum |
Finish |
Electrogalvanized |
Color |
Dark Gray |
Volume (cu.in.) |
6.6 |
Conduit Body Shape |
LR |
|

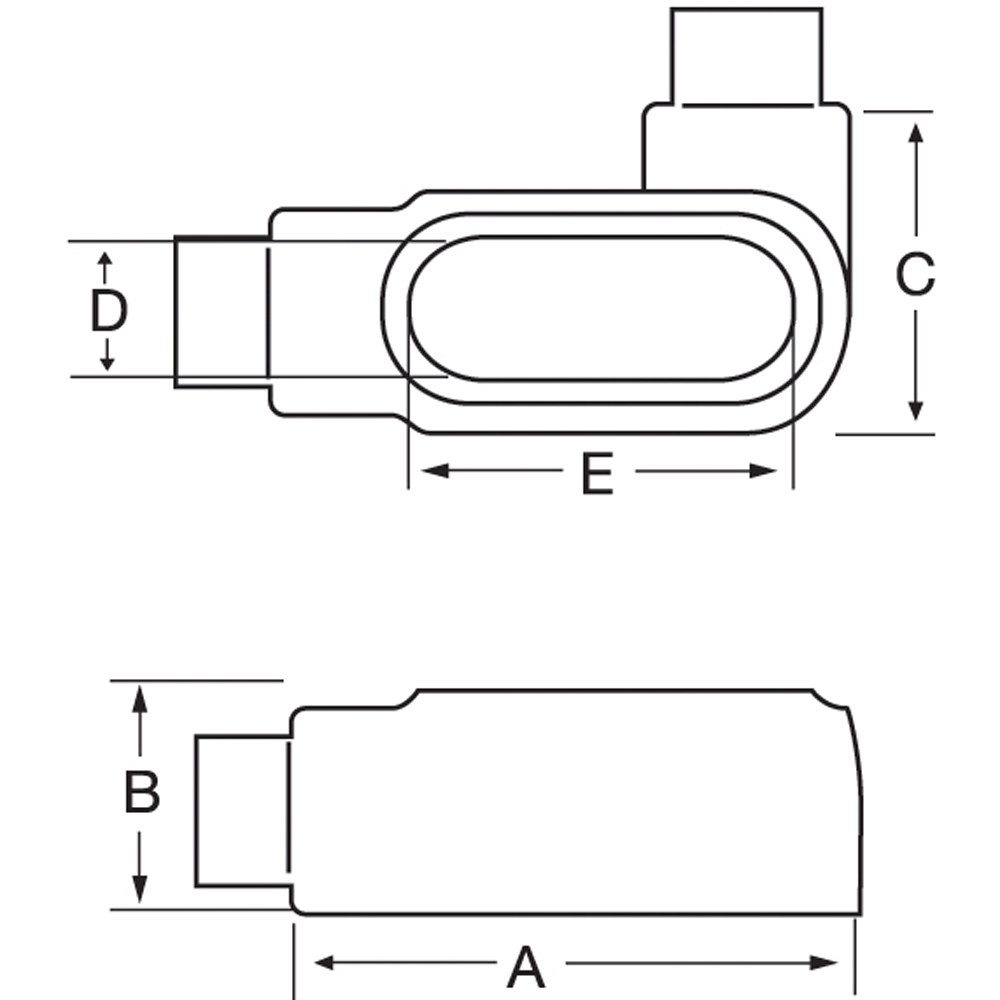

| Dimension Information |
Dimension A (inches) |
5 3/16 |
Dimension B (inches) |
1 5/8 |
Dimension C (inches) |
2 7/16 |
Dimension D (inches) |
1 1/4 |
Dimension E (inches) |
3 13/16 |
|
| Technical Information |
 Chemical Resistance Chart |
Click Here |
|
| Specifications |
Ocal Specification Guide-1995 Master Format |
Click Here |
 Ocal Specification Guide-1995 Master Format |
Click Here |
Ocal Specification Guide-2004 Master Format |
Click Here |
Ocal Specification Guide-2004 Master Format |
Click Here |
|
| Packaging |
Outer Package |
10 |
Package Height |
7 |
Package Length |
12 |
Package Width |
7 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.84 lbs. Each |
|
| Application Support |
Ocal PVC Coated Conduit System |
Click Here |
Ocal Specifications |
Click Here |
Recommended Installation Procedures |
Click Here |
Product Overview-Conduit Outlet Bodies |
Click Here |
NEMA Standards-RN 1 |
Click Here |
NEC 310-16 - Conductors for General Wiring |
Click Here |
NEC Table 8 |
Click Here |
Product Brochure-OCAL-BLUE Double-Coat UL Listed 4X- Form 8 |
Click Here |
|
| Notes |
- Dimensional values are of uncoated conduit bodies.
|
- Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services; (888) 862-3289
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
