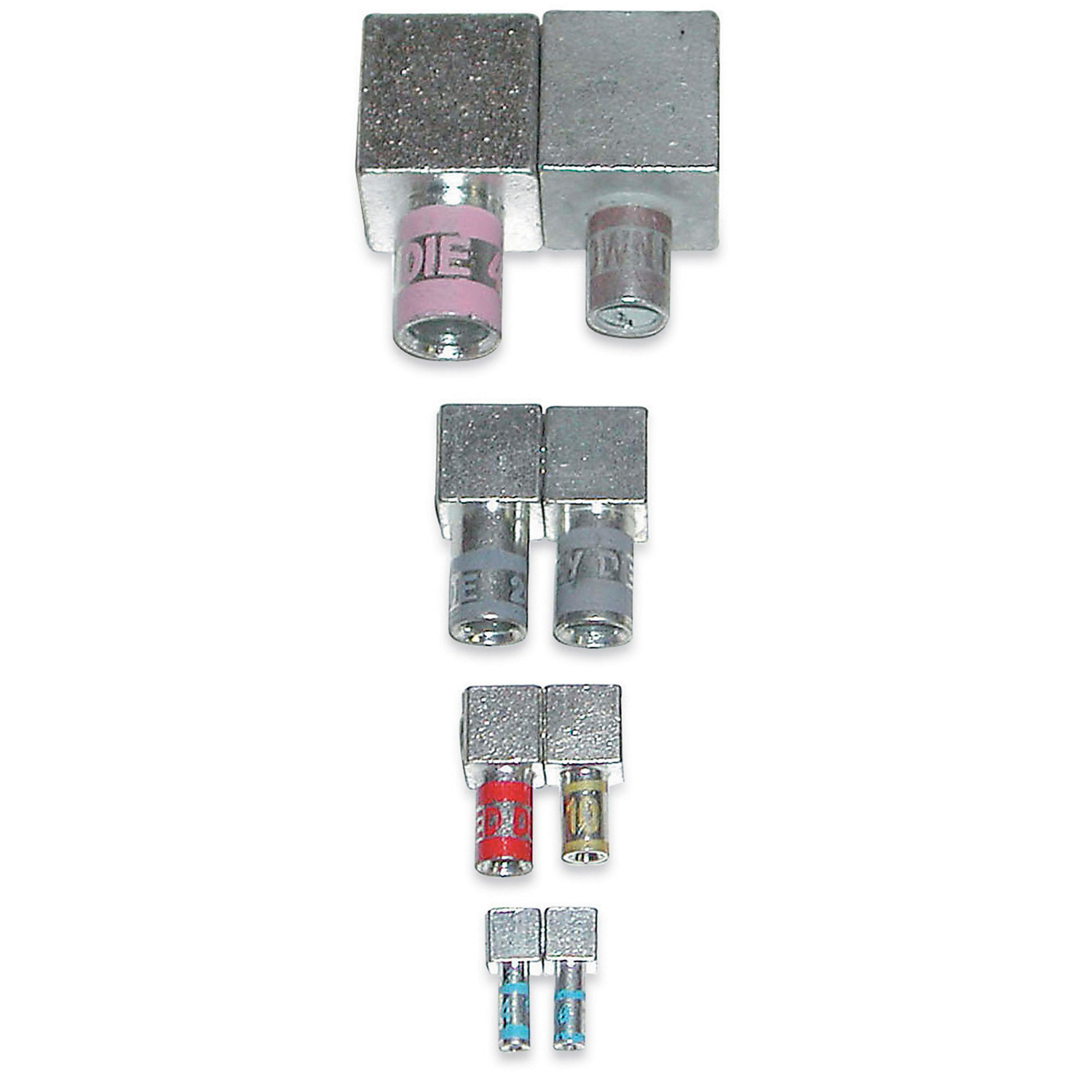

| Features |
- Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
|
- Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
|
|
| General |
Style |
Male (One Load) |
Material |
Copper |
Finish |
Tin-Plated |
Wire Size |
#6 AWG |
Strip Length (inches) |
1/2 |
Die Color |
Blue |
Die Code |
24 |
Body Size |
1 |
Boot Insulation |
MDBOOT1 |
|

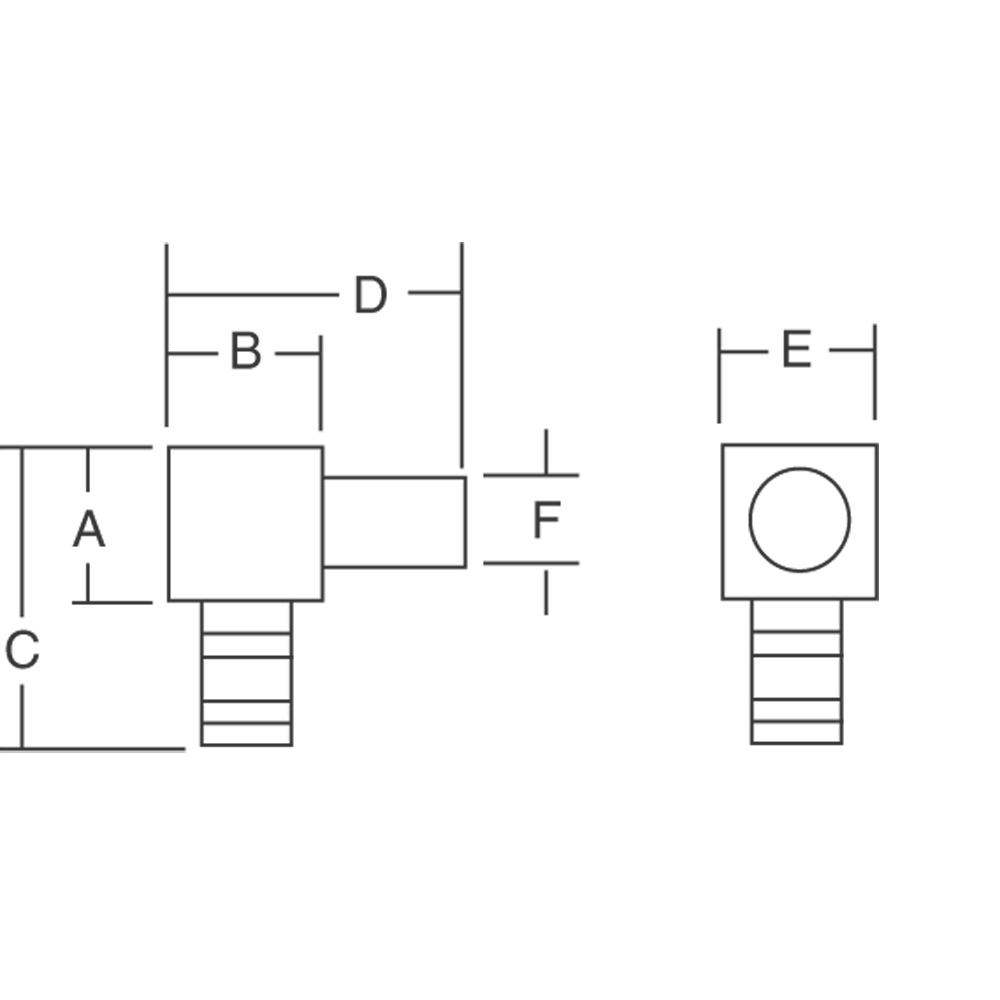

| Dimension Information |
Strip Length (inches) |
1/2 |
A (inches) |
.38 |
B (inches) |
.38 |
C (inches) |
.88 |
D (inches) |
.75 |
E (inches) |
.38 |
F (inches) |
.250 |
|
| Specifications |
Voltage Rating |
600V |
|
| Tooling |
Application Tools |
TBM45S, TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S |
|
| Packaging |
Order Multiple |
10 |
Inner Package |
10 |
Outer Package |
100 |
Package Height |
3.4 |
Package Length |
6 |
Package Width |
4.4 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
3.1 lbs. per 100 |
|
| Application Support |
 T&B Instruction Sheets |
ta00220-tb2 |
|
| Notes |
- Always use the same body size when selecting male and female disconnects. Use insulating boots matching the disconnect body size. To protect the connection from moisture and dirt, use sealing compound catalog number MDBOOT-SEAL.
|
|
| Certifications |
RoHS Compliance |
Yes (exemption 6Lead as an alloying element in steel containing up to 0.35% lead by weight, aluminium up to 0.4% lead by weight and as copper alloy containing up to 4% lead by weight (OJ of EU 2/13/2003)) Generate Compliance Certificate |
