| Features |
- Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps. Eliminates cold-flow problems of Aluminum conductor in Copper clamps.
|
- Annealed, Tin-Plated Copper Pin. Ensures high conductivity and bends easily to aid in cable training.
|
- Oxide Inhibitor and Metal Sealant prevents oxidation and protects pin/body from moisture intrusion.
|
- All pin terminals marked with wire size, installing dies, and compression locations for easy identification.
|
|
| General |
Style |

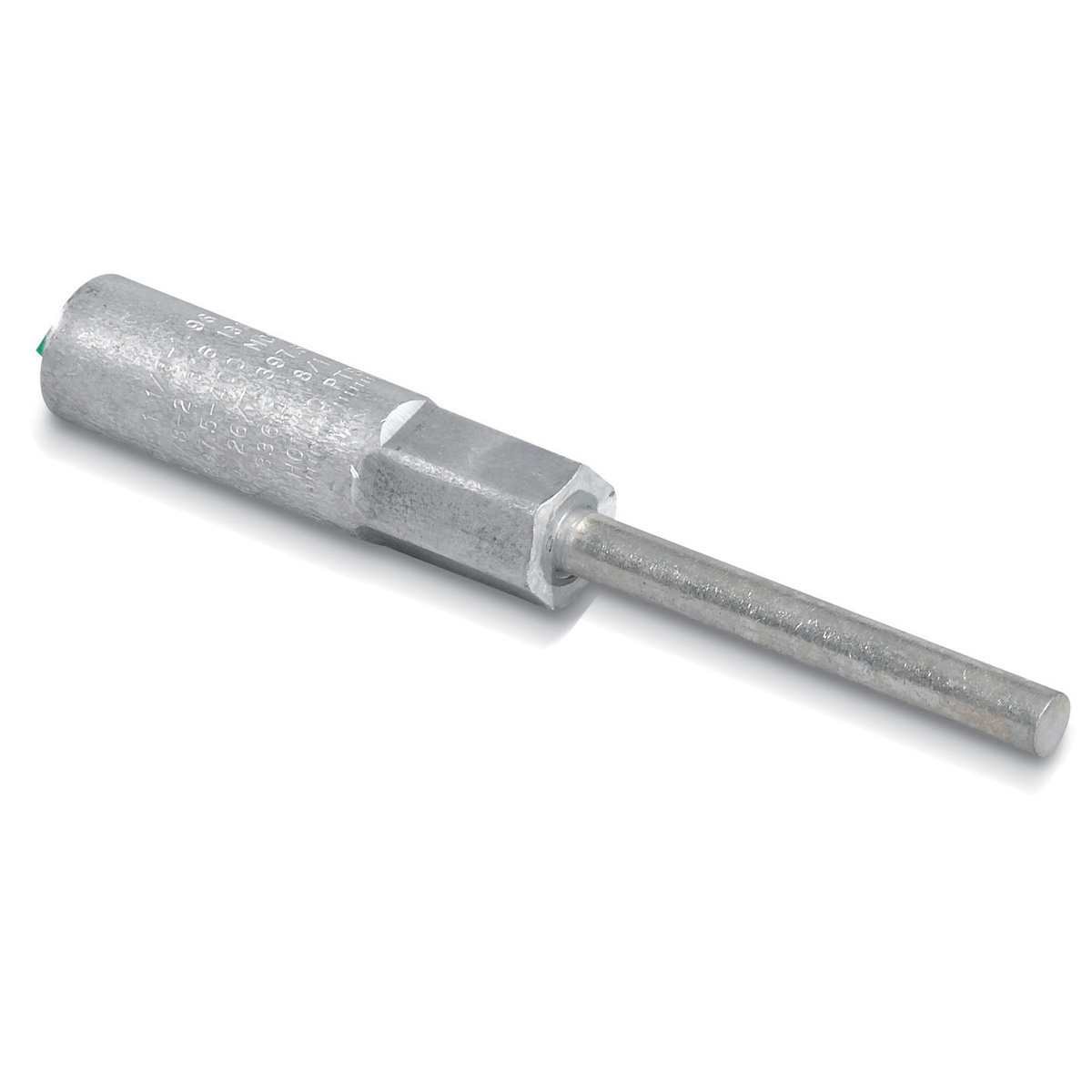

Compression Pin Terminals |
Material |
Aluminum and Copper |
Finish |
Tin Plated |
|
| Dimension Information |
Conductor Size - Str (AL) |
500 & 556.5 |
Conductor Size (ACSR) |
477 (26/7), 556.5 (18/1) |
Length (P) |
5 |
Solid Pin (CU) |
.562 |
|
| Tooling |
Installing Dies |
106A,300,426,1 5/16, 317 |
|
| Notes |
- For additional pin lengths and offset pin styles, please consult your Thomas & Betts representative.
|
