| Features |
- Made from pure Electrolytic Aluminum which provides high strength and high conductivity.
|
- Tin-Plated Copper Pin ensures high conductivity and bends easily to aid in cable training.
|
- Oxide Inhibitor and Metal Sealant prevents oxidation and protects pin/body from moisture intrusion.
|
- All pin terminals marked with wire size, installing dies, and compression locations for easy identification.
|
|
| General |
Style |

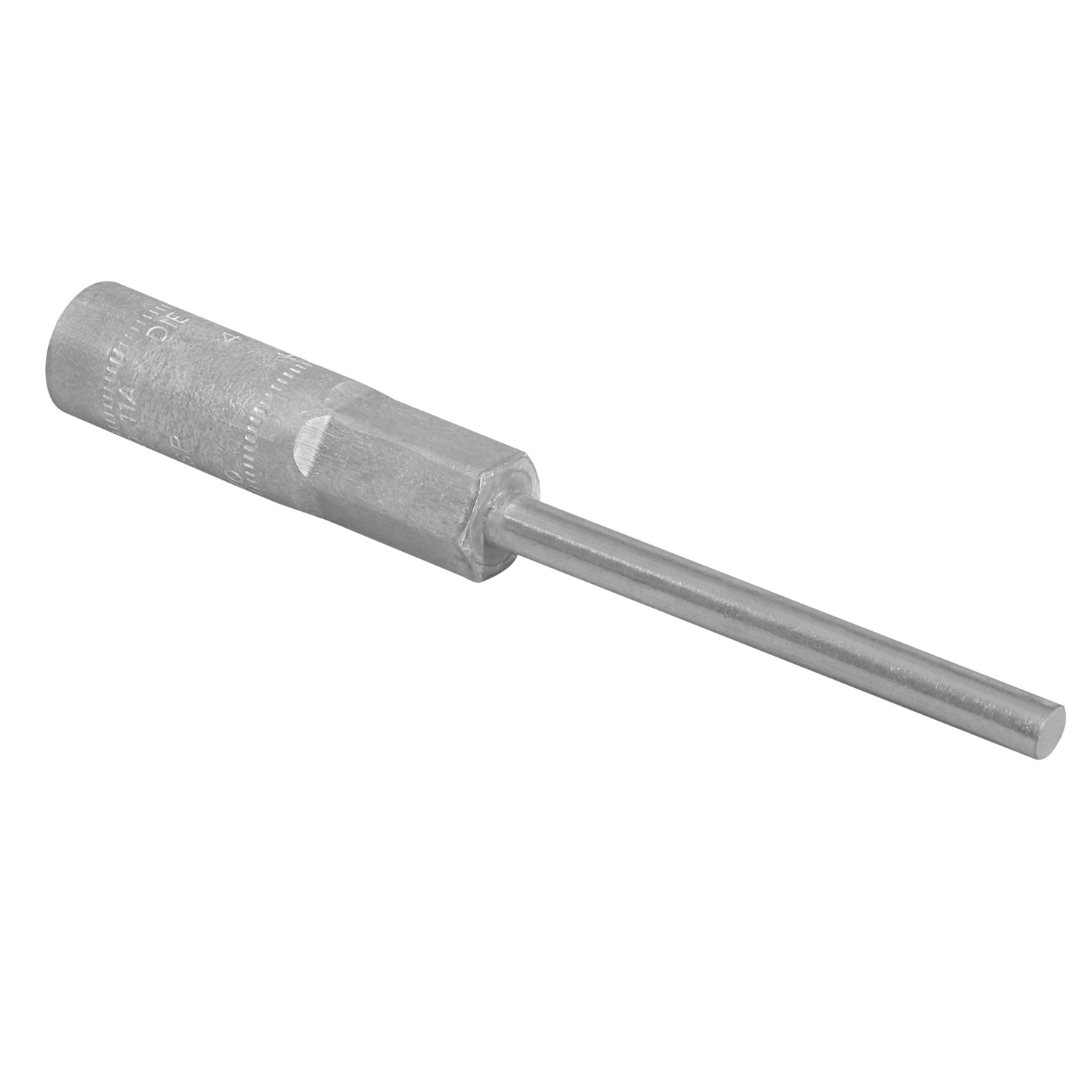

Compression Pin Terminals |
Material |
Aluminum and Copper |
Finish |
Tin Plated |
|
| Dimension Information |
Conductor Size - Str (AL) |
1/0 |
Conductor Size (ACSR) |
1/0 |
Length (B) |
1 7/8 |
Length (P) |
2 1/4 |
Shroud I.D. |
.640 |
Solid Pin (CU) |
.258 |
|
| Tooling |
Installing Dies |
52,TU,BG,8A,5/8, 243 |
|
| Notes |
- For special die requirements, please consult your Thomas & Betts representative.
|
- For additional pin lengths and offset pin styles, please consult your Thomas & Betts representative.
|
