| Features |

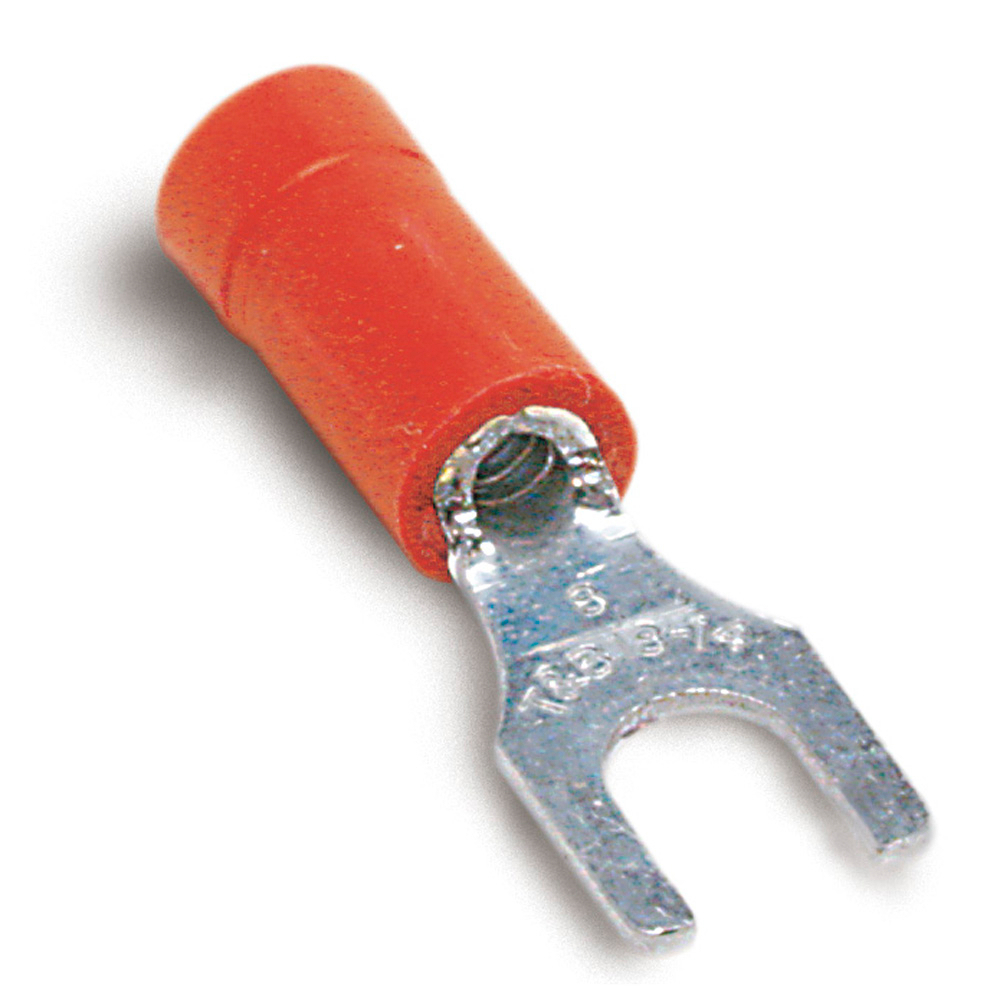

- These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
|
|
| General |
Insulation Type |
Insulated Vinyl |
Terminal Series |
RA |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Red |
Wire Range |
22-16 |
Stud Size |
#6 |
|
| Dimension Information |
Maximum Insulation (inches) |
.150 |
Stock Thickness |
.03 |
A (inches) |
.94 |
B (inches) |
.25 |
C (inches) |
.27 |
M (inches) |
.81 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
600V |
Flammability Rating |
UL 94 V-0 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
WT145C, WT2000, WT112M, ERG4001, ERG4003 |
Recommended Tool |
ERG4001 |
|
| Packaging |
Order Multiple |
1000 |
Inner Package |
1000 |
Outer Package |
10000 |
Package Type |
Bulk |
Package Height |
9.8 |
Package Length |
16.9 |
Package Width |
6.7 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.21 lbs. per 100 |
Alternate Package Qty |
18RA-6F |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Notes |
- Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
