| Features |
- Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
|
|
| General |
Insulation Type |
Insulated Nylon |
Terminal Series |
RB |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Blue |
Wire Range |
18-14 |
Stud Size |
#6 |
|

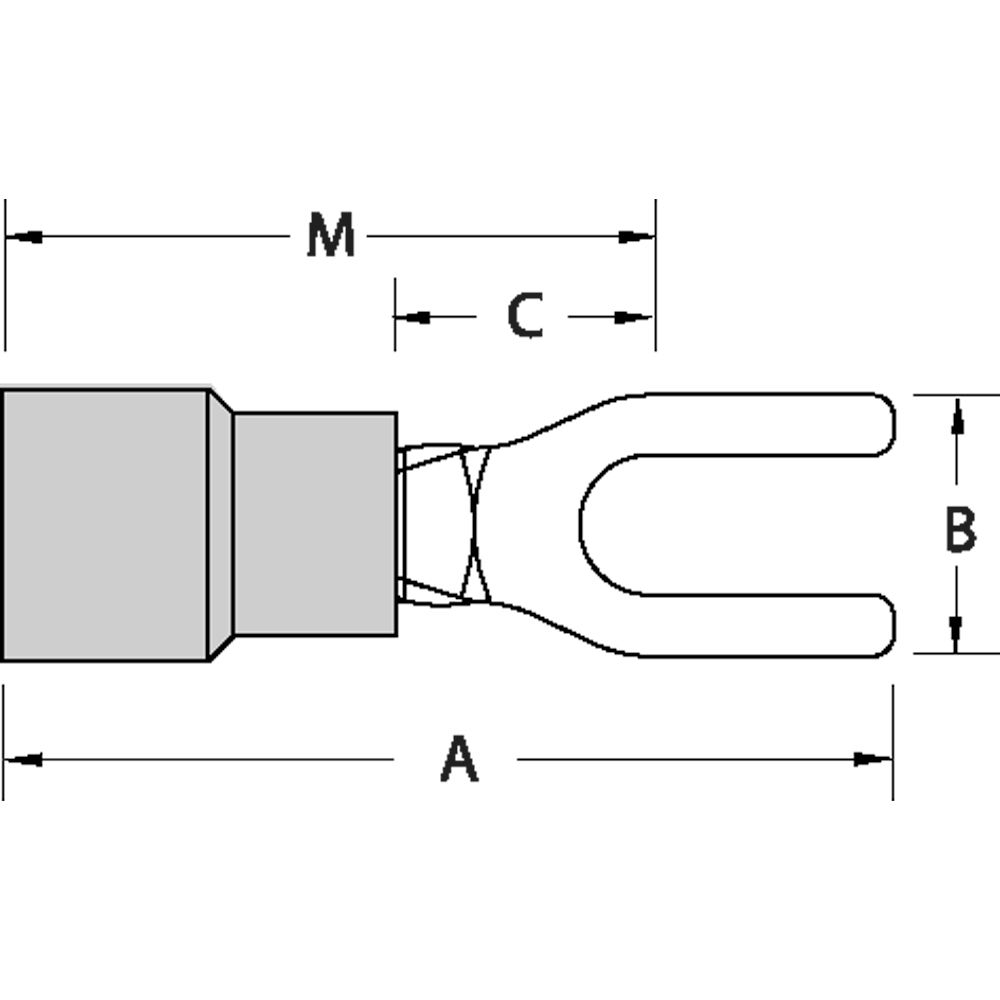

| Dimension Information |
Maximum Insulation (inches) |
.162 |
Stock Thickness |
.03 |
A (inches) |
.74 |
B (inches) |
.28 |
C (inches) |
.16 |
M (inches) |
.60 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
600V |
Flammability Rating |
UL 94 V-2 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A |
Recommended Tool |
ERG4001 |
|
| Packaging |
Order Multiple |
1000 |
Inner Package |
1000 |
Outer Package |
5000 |
Package Type |
Standard |
Package Height |
7 |
Package Length |
10.5 |
Package Width |
8.75 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.24 lbs. per 100 |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
