| Features |
- Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
|
|
| General |
Insulation Type |
Insulated Nylon |
Terminal Series |
RB |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Blue |
Wire Range |
16-14 |
|

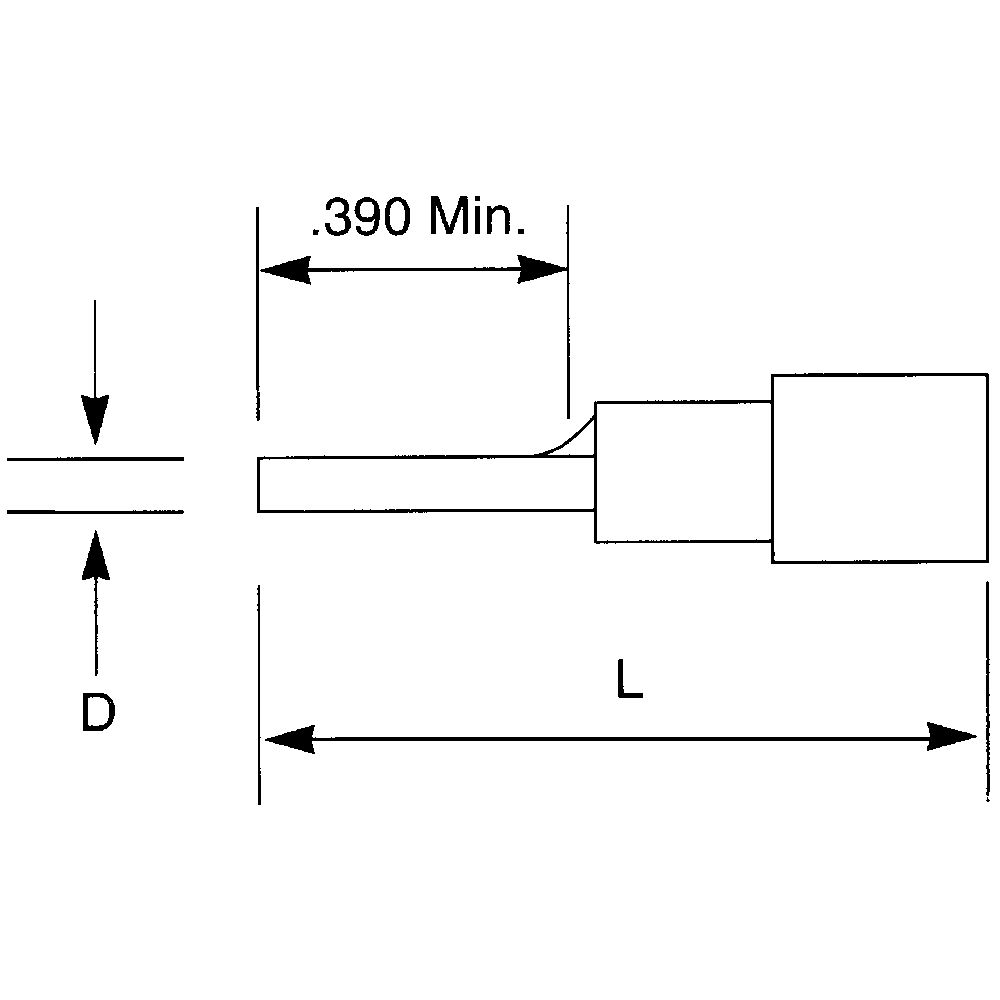

| Dimension Information |
Length (inches) |
.87 |
Diameter D (inches) |
0.075 |
Stock Thickness |
.03 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
300V |
Flammability Rating |
UL 94 V-2 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
WT2000, WT1455, ERG4001, ERG4003 |
Recommended Tool |
ERG4001 |
|
| Packaging |
Order Multiple |
100 |
Inner Package |
100 |
Outer Package |
500 |
Package Type |
Standard |
Package Height |
8.5 |
Package Length |
10.25 |
Package Width |
8.5 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.56 lbs. per 100 |
Alternate Package Qty |
RB147PT |
|
| Application Support |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
