| Features |
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
|
|
| General |
Insulation Type |
Expanded Insulated Nylon |
Terminal Series |
RC |
Material |
Copper |
Finish |
Electro -Tin Plated |
Color |
Yellow |
Wire Range |
12-10 |
Stud Size |
#10 |
|
| Dimension Information |
Maximum Insulation (inches) |
.250 |
Stock Thickness |
.04 |

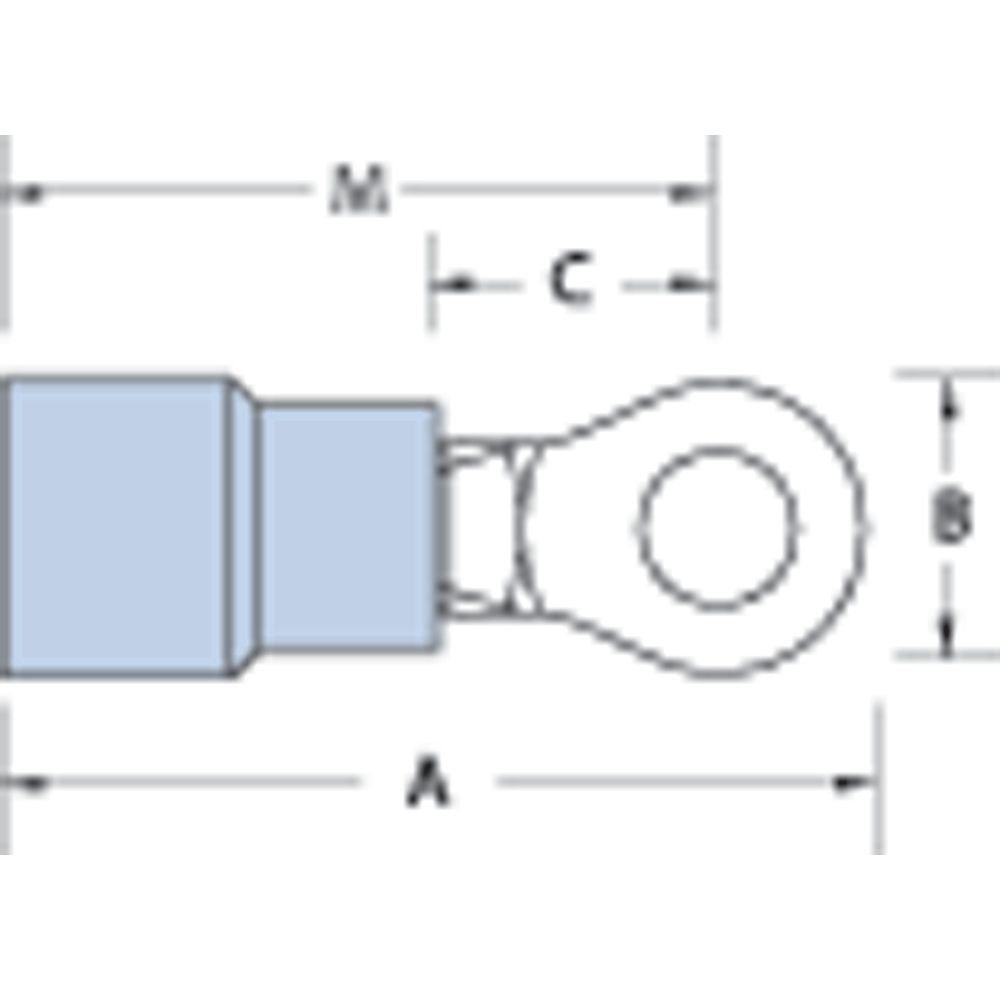

A (inches) |
1.10 |
B (inches) |
.37 |
C (inches) |
.27 |
M (inches) |
.91 |
|
| Specifications |
Temperature Rating |
105°C |
Voltage Rating |
600V |
Flammability Rating |
UL 94 V-2 |
|
| Tooling |
 Tool Charts |
Click Here |
Application Tools |
WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A |
Recommended Tool |
ERG4001 |
|
| Packaging |
Order Multiple |
500 |
Inner Package |
500 |
Outer Package |
5000 |
Package Type |
Bulk |
Package Height |
7.7 |
Package Length |
17 |
Package Width |
10 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
0.6 lbs. per 100 |
Alternate Package Qty |
RC10-10X |
|
| Application Support |
 T&B Sales Drawings |
wsd-000269 |
Overview |
Click Here |
Wire Guide Tables |
Click Here |
|
| Notes |
- Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
|
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
