| Features |
- Made from Aluminum which provides high strength and conductivity.
|
- Annealed, Tin-Plated Copper Pin. Ensures high conductivity and bends easily to aid in cable training.
|
- Oxide Inhibitor and Metal Sealant prevents oxidation and protects pin/body from moisture intrusion.
|
- All pin terminals marked with wire size, installing dies, and compression locations for easy identification.
|
|
| General |
Style |

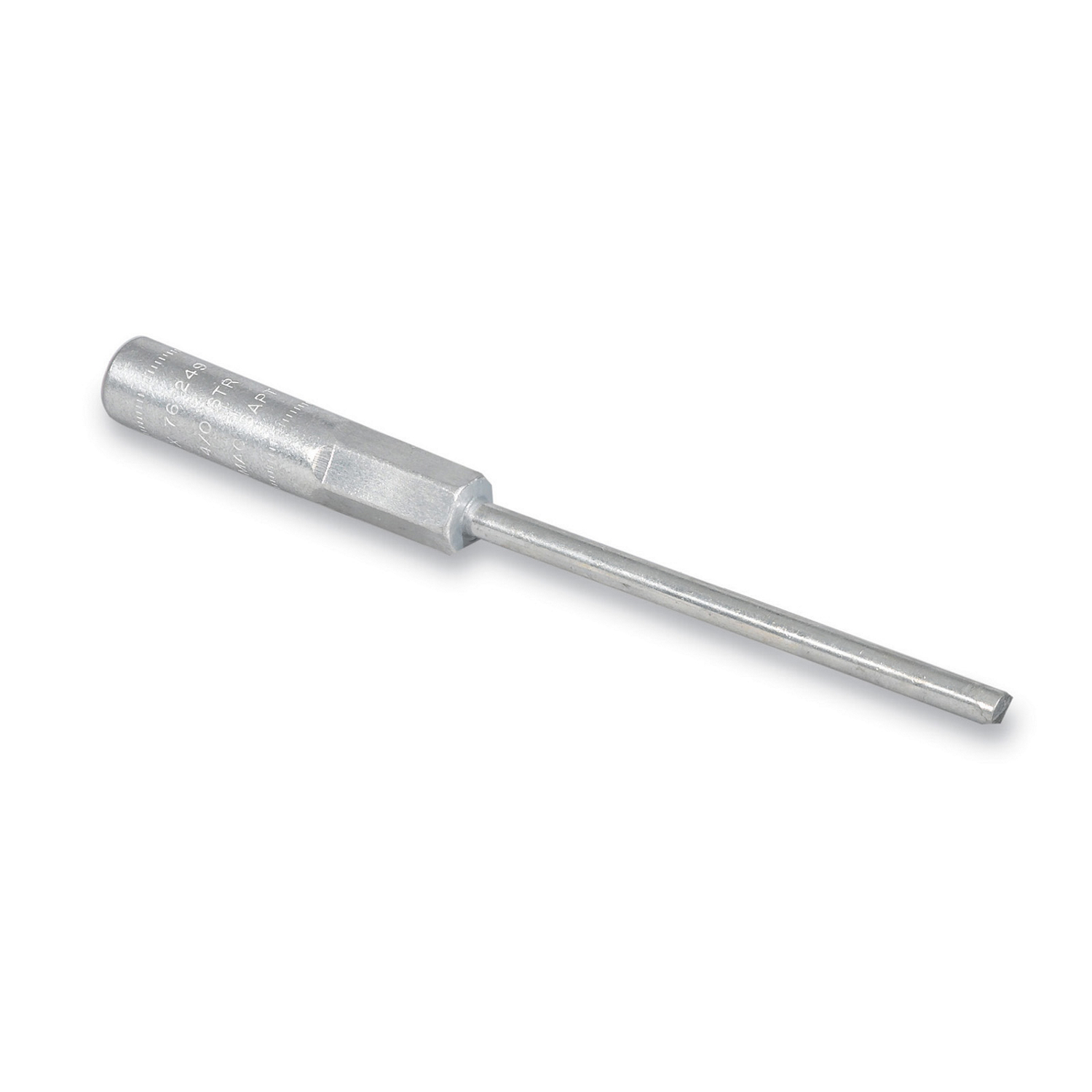

Compression Pin Terminals |
Conductor Size (Stranded) |
1/0 |
Material |
Aluminum and Copper |
Finish |
Tin Plated |
|
| Dimension Information |
Barrel Insertion |
1 3/4 |
Conductor Size (ACSR) |
1/0 |
Pin Diameter |
1/0 (.325) |
Pin Length |
6 |
|
| Tooling |
Installing Dies |
TU,52,BG,243, 5/8 |
|
| Notes |
- For additional pin lengths and offset pin styles, please consult your Thomas & Betts representative.
|
