| Features |
- Sealing chamber is easier to fill, requires less sealing compound, savs time and material.
|
- Flame path is optimally designed to allow for easy insertion into hub, quick-turn lock.
|

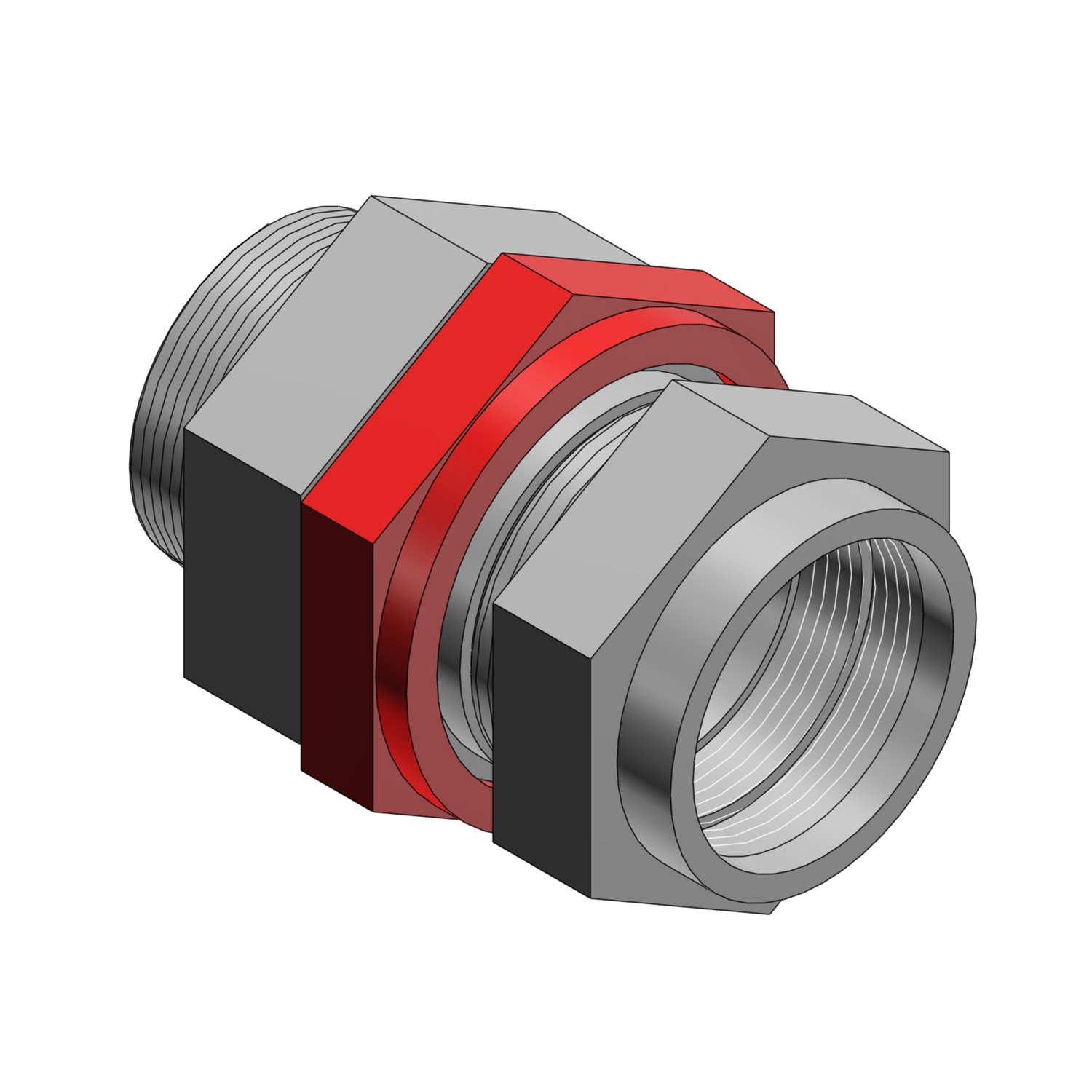

- Union features twist-on action; red color for high visibility.
|
- Union features twist-on action; red color for high visibility.
|
- Exclusive power grip, provides grip that is high up on cable armor non-magnetic stainless steel power grip grounding ring.
|
|
|
| Application |
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas. (these fittings are suitable for hazardous areas when used with T&B sealing compound).
|
- Form a mechanical grip and water and/or oil-resistant termination.
|
- Provide grounding continuity of cable armor.
|
|
| General |
Material |
Aluminum |
Sealing Compound Required-Putty (grams) |
125 |
Sealing Compound Required-Liquid (cc) |
66 |
|
| Dimension Information |
Hub Size (inches) |
2 |
Dimension A (inches) |
1.757 |
Dimension B (inches) |
4.05 |
Dimension C (inches) |
3.62 |
Range Over Jacket -Minimum (inches) |
1.900 |
Range Over Jacket -Maximum (inches) |
2.187 |
Range Over Armor -Minimum (inches) |
1.790 |
Range Over Armor -Maximum (inches) |
2.107 |
|
| Packaging |
Outer Package |
1 |
Package Height |
4.1 |
Package Length |
5.5 |
Package Width |
5.5 |
T&B Sold in UOM |
Each |
T&B Weight Per UOM |
145 lbs. per 100 |
|
| Application Support |
 Product Specifications & Overview |
Click Here |
|
| Notes |
*Note |
Class I, Div. 2, Groups A, B, C, D |
**Note |
Class II, Div. 2, Groups F, G |
***Note |
Class III |
****Note |
Enclosure Type 4 |
|
| Certifications |
RoHS Compliance |
Yes Generate Compliance Certificate |
