Overhead Connectors and Covers
T&B Catalog Number:
U 5 U 6
UPC Number:
78378675690
Status:
Made to order
Description:

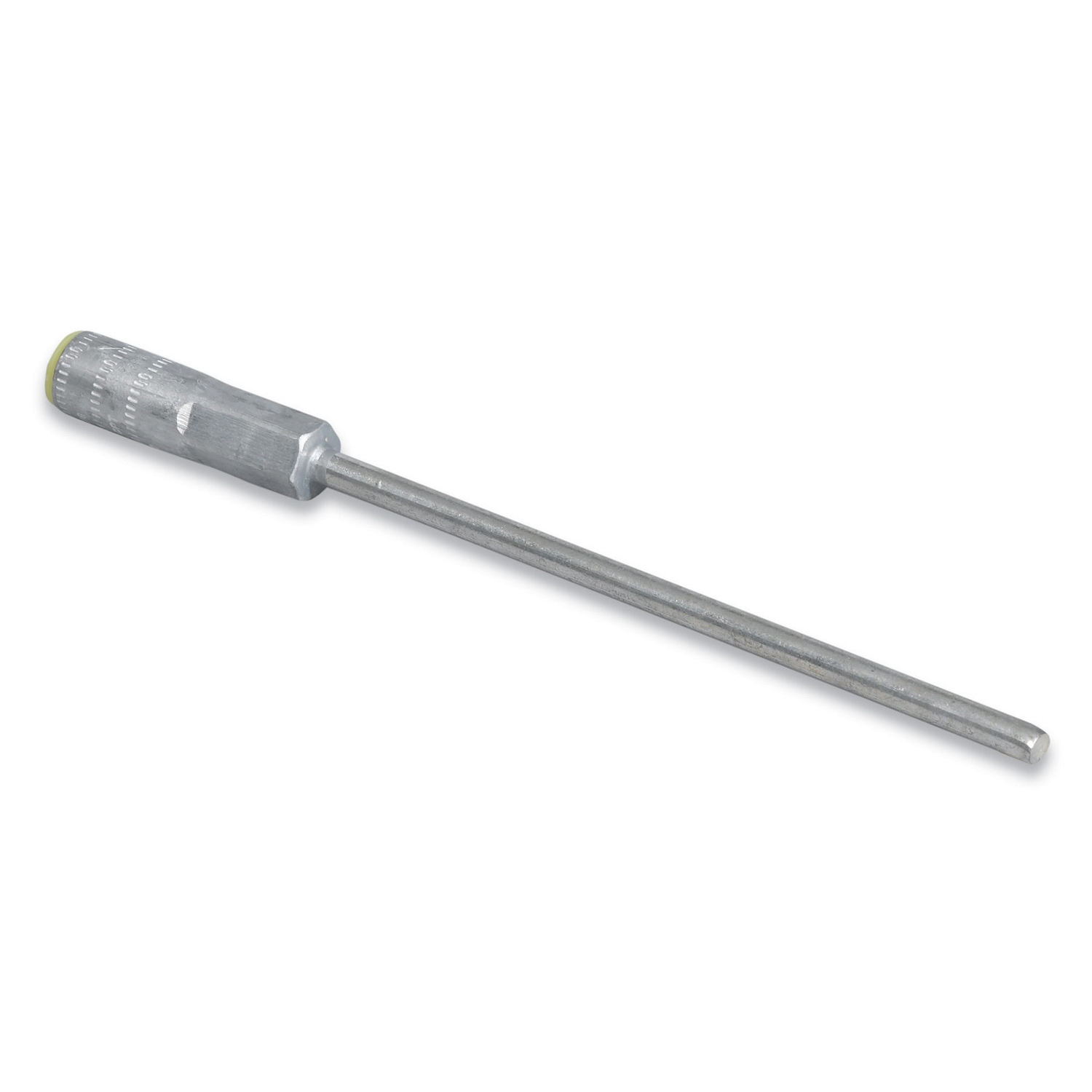

Aluminum Compression Pin Terminals - U5 Series, conductor size AL 4 sol, 5 & 6 str, 6 ACSR, installing dies 5/8,52,BG,TU,8A, solid CU Pin 4 (.204), length (P) 2"
SUBMITTAL PACKAGE
Where To Buy

Enter Zip Code:
Enter Quantity:
Features
  • Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps. Eliminates cold-flow problems of Aluminum conductor in Copper clamps.
  • Annealed, Tin-Plated Copper Pin. Ensures high conductivity and bends easily to aid in cable training.
  • Oxide Inhibitor and Metal Sealant prevents oxidation and protects pin/body from moisture intrusion.
  • All pin terminals marked with wire size, installing dies, and compression locations for easy identification.

General
Style Compression Pin Terminals
Material Aluminum and Copper
Finish Tin Plated

Dimension Information
Conductor Size - Sol (AL) 4
Conductor Size - Str (AL) 5 & 6
Conductor Size (ACSR) 6
Length (P) 2
Solid Pin (CU) 4 (.204)

Tooling
Installing Dies 5/8,52,BG,TU,8A
